EX3400-48T Overview

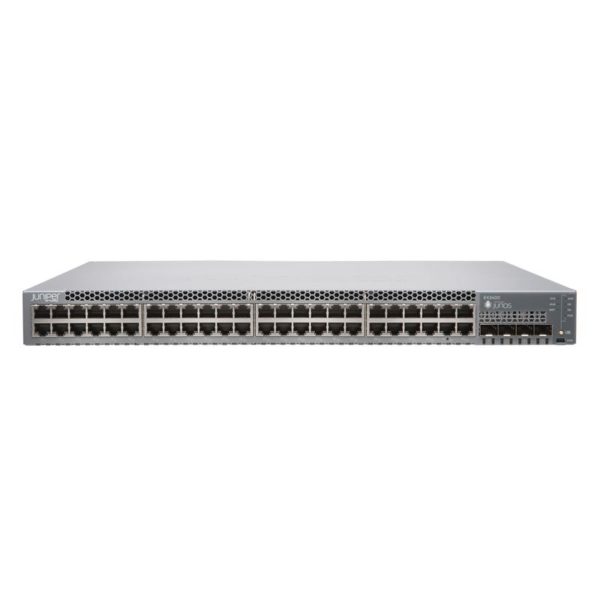

EX3400-48T is a Juniper EX3400 switch with 48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+, redundant fans, front-to-back airflow, 1 AC PSU JPSU-150-AC-AFO included (optics sold separately). EX3400 Ethernet Switches are a cost-effective solution for today’s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.
Quick Spec
Table 1 shows the quick spec.
| SKU | EX3400-48T |
| Ports | 48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+ |
| Backplane speed | 160 Gbps |
| Data rate | 336 Gbps |
| Throughput | 250 Mpps (wire speed) |
| Dimensions (W x H x D) | 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
Product Details

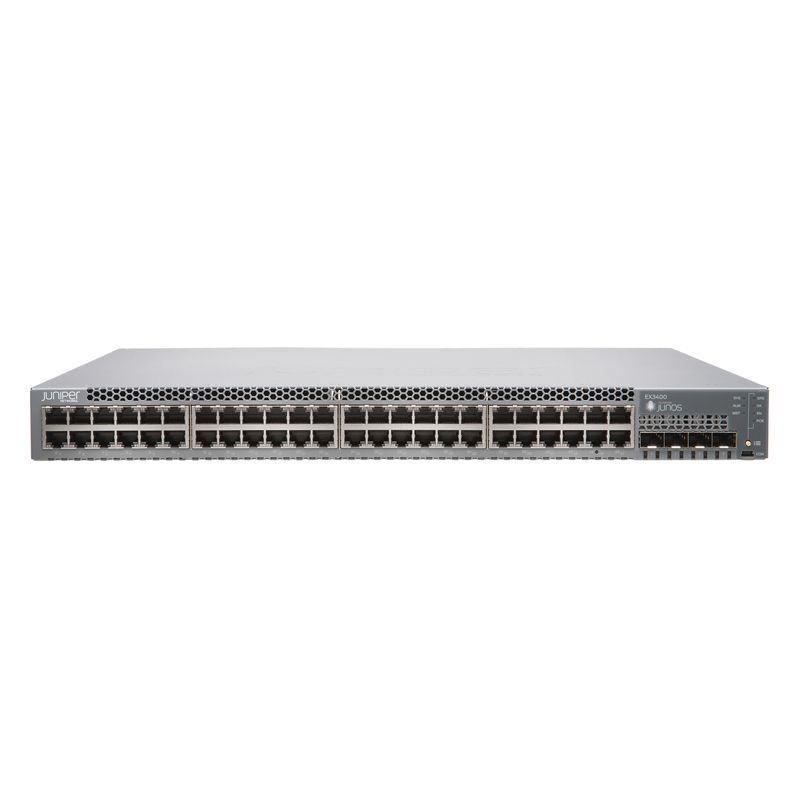

Figure 1 shows the front panel of EX3400-48T.
Note:
| ① | RJ-45 ports | ④ | Factory Reset/Mode button |
| ② | Uplink ports | ⑤ | Port status mode LEDs |
| ③ | Mini-USB console port | ⑥ | Chassis status LEDs |
Figure 2 shows the rear panel of EX3400 AC chassis.
Note:
| ① | Management Ethernet port | ⑦ | AC power supply |
| ② | Protective earthing terminal | ⑧ | Serial Number ID Label |
| ③ | ESD point | ⑨ | QSFP+ uplink ports |
| ④ | Fan modules | ⑩ | RJ-45 console port |
| ⑤ | CLEI code label | ⑪ | USB port |
| ⑥ | Empty slot for power supply covered by a blank panel |
