Description
A901-6CZ-FT-D Specifications |
|

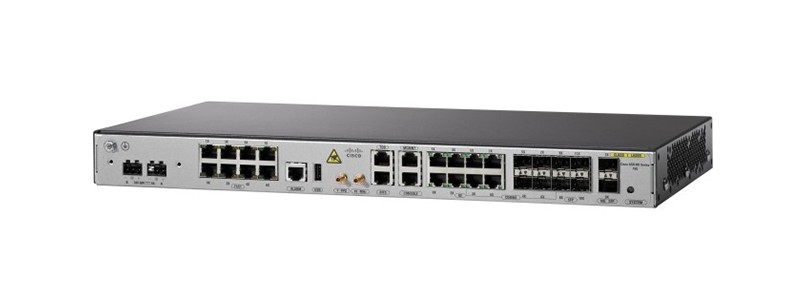

| Description | Cisco ASR 901 Series Aggregation Services Router Chassis, Ethernet and TDM interfaces, 10 GE, DC power, USB |
|
System Specifications |
|
| Dimensions (H x W x D) | 1.7 x 17.5 x 9.1 in. (43.2 x 444.5 x 231 mm), 1RU |
| Weight | 8.15 lb (3.7 kg) |
| Memory | Flash memory: 128 MB (onboard flash)
System memory: 1 GB (DDR3) |
| Rack mounts | 10 GE models:
· 19-in. rack mount option · 23-in. rack mount option · ETSI rack mount option · Recessed rack mount option for 19-in. cabinets · Recessed rack mount option for 23-in. cabinets · Recessed rack mount option for ETSI cabinets · Wall mount option |
| Ethernet ports | 4 100/1000 RJ-45 Gigabit Ethernet ports
4 x 1 SFP Gigabit Ethernet ports 4 x 1 Gigabit Ethernet Combo ports 2 x 10 Gigabit Ethernet ports (10 GE models only) |
| TDM ports | 8 T1/E1 |
| Console port | 1 (up to 115.2 Kbps) |
| USB port | 1 supported on the following chassis models: |
| External timing ports | BITS input, 10-MHz input/output, 1 PPS input/output, ToD interface, and SyncE |
| Fans | 10 GE models: three fans, with redundancy |
| Air flow | Left to right airflow |
| Cabling | Front-panel access cabling and LED indicators |
| Power supplies | 2 power supplies (DC only); module redundancy: 1:1 |
| Mean Time Between Failure (MTBF) | 378,490 hours |
|
Power Specifications |
|
| Power consumption | 10 GE models: dual DC
Maximum DC-input power and power dissipation at 48V supply: · A901-6CZ-F-D: 58W · A901-6CZ-FS-D: 59W · A901-6CZ-FT-D: 67W |
| Power rating | 10 GE models:
· DC-input voltage rating: 24 VDC, -48 VDC, -60 VDC DC-input current rating: 4A maximum |
| Power connector | 6-position 2-tier stacked connector comprising two feeds, A and B DC power (AMPHENOL ELVA06100), and 3‑position mating connectors for each feed (AMPHENOL ELVP03100) |
|
Environmental Specifications |
|
| Operating temperature | -40 to 149°F (-40 to 65°C) |
| Nonoperating temperature | -40 to 158°F (-40 to 70°C) |
| Relative humidity | 10% to 85%, noncondensing, ±5 % |
| Operational altitude | 13,000 ft (4000m) maximum 104°F (40°C) ambient |
| Acoustic noise | 10 GE models: 61 dBA with 19 cfm fan |
| Air flow | 10 GE models: 57 cfm |
