Description

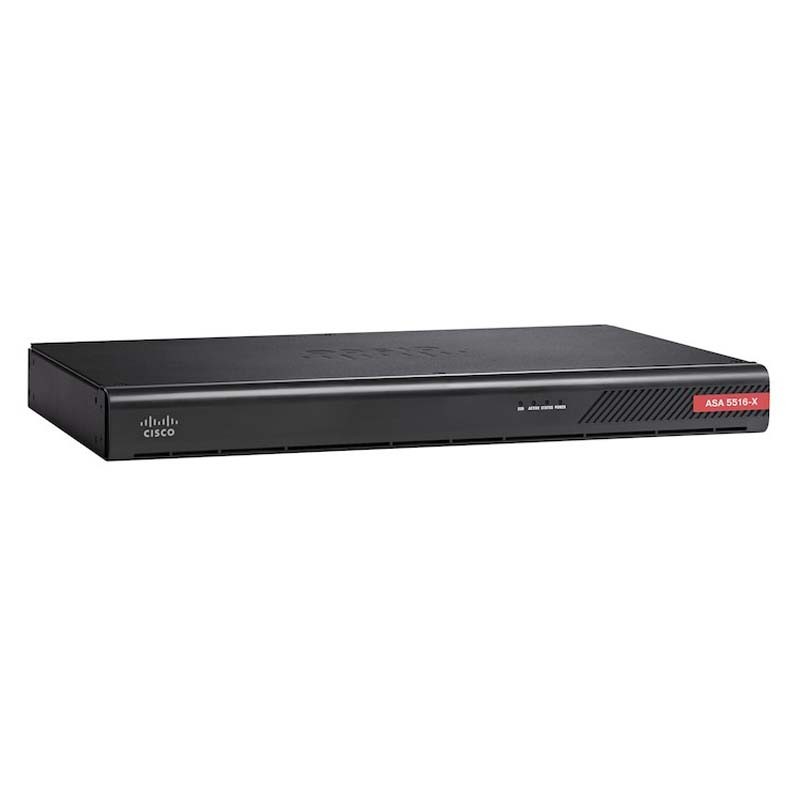

Specification (ASA5516-FPWR-K9)
ASA5516-FPWR-K9 Specification |
|
| Stateful inspection throughput (maximum1) | 1.8 Gbps |
| Stateful inspection throughput (multiprotocol2) | 900 Mbps |
| Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput3 |
250 Mbps |
| Users/nodes | Unlimited |
| IPsec site-to-site VPN peers | 300 |
| Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5 | 3005 |
| Virtual interfaces (VLANs) | 100 |
| Security contexts5(included; maximum) | 2; 5 |
| High availability4 | Active/ Active and Active/ Standby |
| Integrated Wireless Access Point
(See Cisco AP 702 datasheet for WiFi technical details) |
N/A |
| Expansion slot | N/A |
| User-accessible Flash slot | No |
| USB 2.0 ports | USB port type ‘A’, High Speed 2.0 |
| Integrated I/O | 8 x 1GE |
| Expansion I/O | N/A |
| Dedicated management port | Yes (To be shared with FirePOWER Services), 10/100/1000 |
| Serial ports | 1 RJ-45 and Mini USB console |
| Solid-state drive | 100 GB mSata6 |
| Memory | 8 GB |
| System flash | 8GB |
| System bus | Multibus architecture |
| Temperature | 32 to 104°F (0 to 40 °C) |
| Relative humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 10,000 ft (3048 m) |
| Acoustic noise |
41.6 dBA type
67.2 dBA max |
| Temperature7 | -13 to 158ºF (-25 to 70ºC) |
| Relative humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 15,000 ft (4572 m) |
| AC range line voltage | External, 90 to 240 volts alternating current (VAC) |
| AC normal line voltage | 92 to 240 VAC |
| AC current | 0.25AC amps |
| AC frequency | 50/60 Hz |
| Dual-power supplies | N/A |
| DC domestic line voltage | N/A |
| DC current | N/A |
| Steady state | 51W |
| Maximum peak |
56W |
| Maximum heat dissipation |
192 Btu/hr |
| Form factor | 1 rack unit (RU), 19-in. rack-mountable |
| Dimensions (H x W x D) | 1.67 x 16.7 x 15.6 in. (4.24 x 42.9 x 39.5 cm) |
| Weight (with AC power supply) | 13.39 lb (6.07 kg) |
| Package Weight | 18.87 lb (8.56 Kg) |
