Description
-

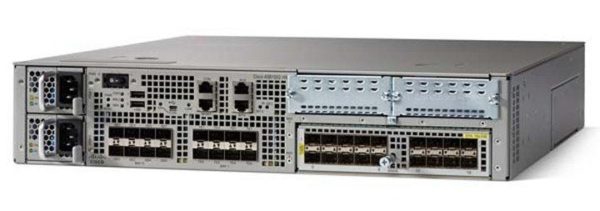

ASR 1002-HX= Specification
Physical specifications Height: 3.5 in. (88.9 mm) Width: 17.3 in. (439.4 mm)
Depth: 19.25 in. (489.0 mm)
Weight:
● 34 lb (15.45 kg) (with dual AC power supplies)
● 34 lb (15.45 kg) (with dual DC power supplies)
Default memory 16-GB DRAM shared across route processor, ESP, and MIP Number of SIPs or Ethernet line cards supported Integrated in chassis Shared port adapters N/A Ethernet port adapters 1 EPA slot Cisco ASR 1000 Series ESP Integrated in chassis Route processor Integrated in the chassis: Cisco ASR 1002-HX Series Route Processor Redundancy Software: Yes Built-in Gigabit Ethernet ports Yes: 8 Gigabit Ethernet SFP ports Built-in 10 Gigabit Ethernet port Yes: Eight 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports Note:Built-in 10-GB ports cannot be reduced to 1-GB speed.
Network interface module Yes ESP support Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) equivalent ESP bandwidth 100 Gbps ESP memory Share the same control memory on route processor SIPs and Ethernet line cards Integrated in chassis: not upgradable Embedded hardware-based encryption Yes: Up to 25-Gbps crypto support throughput Minimum Cisco IOS XE Software release Cisco IOS XE Software Release 16.2.1S Rack-mounting Yes: 19-inch Wall-mounting No External USB flash memory 1-GB USB flash-memory support Redundant power supply Yes: Dual power supplies by default; option of either AC or DC power supply Note: A mix of one AC and one DC power supply is not supported.
Power input Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC
(-40 to -72; -48V nominal)
Power consumption ● Maximum (DC): 500W ● Maximum (AC): 500W
Airflow Front-to-back Operating temperature (nominal) 32 to 104°F
(0 to 40°C)Operating temperature (short-term) 32 to 122°F
(0 to 50°C)Operating humidity (nominal) (relative humidity) 10 to 85% Operating humidity (short-term) 5 to 90% Storage temperature -40 to 150°F (-40 to 70°C)
Storage humidity (relative humidity) 5 to 95% Operating altitude -500 to 10,000 feet
(152 to 3048 meters)Network Equipment Building Standards (NEBS) GR-1089 and GR-63 EMC standards Emissions ● FCC 47CFR15 Class A
● AS/NZS CISPR 22
● CISPR 22 Class A
● EN55022 Class A
● ICES-003 Class A
● VCCI Class A
● CNS-13438 Class A
● EN61000-3-2
● EN61000-3-3
Immunity
● IEC/EN61000-4-2 Electrostatic Discharge Immunity
● IEC/EN61000-4-3 Radiated Immunity
● IEC/EN61000-4-4 EFT-B Immunity
● IEC/EN61000-4-5 Surge
● IEC/EN61000-4-6 Immunity to Conducted Disturbances
● IEC/EN61000-4-8 Power Frequency Magnetic Field Immunity
● IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations
ETSI/EN
● EN55022/CISPR 22 Information Technology Equipment (Emissions)
● EN55024/CISPR 24 Information Technology Equipment (Immunity)
● EN300 386 Telecommunications Network Equipment
● EN50082-1/EN61000-6-1 Generic Immunity Standard
Safety Standard UL60950-1 CSA C22.2 No. 60950-1-03
EN 60950-1
IEC 60950-1
AS/NZS 60950.1
