Description

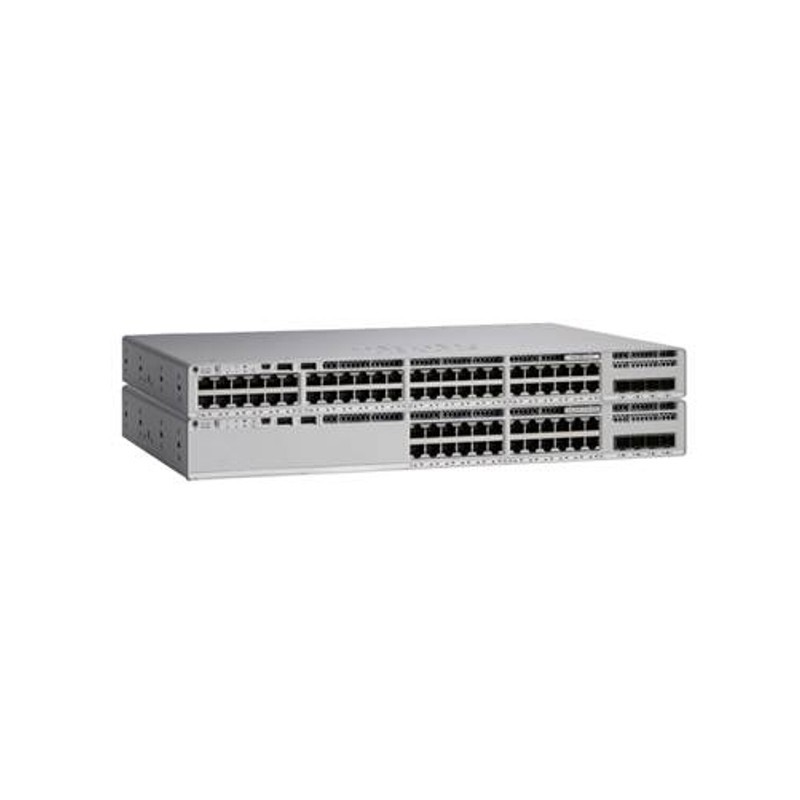

| Model | C9200L-48PXG-4X-E |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) |
| Uplink configuration | 4x 10G fixed uplinks |
| Default primary AC power supply | PWR-C5-1KWAC |
| Fans | Fixed redundant |
| Software | Network Essentials |
| Stacking bandwidth | 80 Gbps |
| DRAM | 2 GB |
| Flash | 4 GB |
| Switching capacity | 392 Gbps |
| Forwarding rate | 291.66 Mpps |
| Chassis Dimensions | 1.73 x 17.5 x 13.8 in
4.4 x 44.5 x 35.0 cm |
Product Details
Catalyst 9200 series provides these highlights:
● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
● Flexible downlink options with data or PoE+
● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
● Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
● Advanced network monitoring using Full Flexible NetFlow
● Cisco Software-Defined Access (SD-Access):
◦ Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
◦ Network assurance and improved resolution time through Cisco DNA Center™
● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries
Supported Products
Table 2 shows the recommended supported products.
| StackWise-80 and StackWise-160 Kit and cables | |
| Product number | Product description |
| C9200L-STACK-KIT= | C9200L Stack Kit Spare |
| STACK-T4-50CM | 50CM Type 3 Stacking Cable |
| STACK-T4-1M | 1M Type 3 Stacking Cable |
| STACK-T4-3M | 3M Type 3 Stacking Cable |
| Soft Licenses | |
| Product number | Product description |
| C9200L-DNA-P-48 | C9200L DNA Premier Term, 48-Port: Includes Term Licenses for DNA Advantage, 25 ISE Base & 25 ISE Plus Endpoints, 25 Stealthwatch Flows (including Virtual Flow Collector & Management Console). Requires separate purchase of ISE appliance/ISE VM and DNA Center appliance |
| C9200L-DNA-P-48-3Y | C9200L DNA Premier, 48-port, 3Y Term – DNA, 25 ISE PLS and ISE BASE, 25 SWATCH |
| C9200L-DNA-P-48 -5Y | C9200L DNA Premier, 48-port, 5Y Term – DNA, 25 ISE PLS and ISE BASE, 25 SWATCH |
| C9200L-DNA-P-48 -7Y | C9200L DNA Premier, 48-port, 7Y Term – DNA, 25 ISE PLS and ISE BASE, 25 SWATCH |
| Power supplies | |
| Product Number | Product Description |
| PWR-C5-1KWAC/2= | 1000WAC power supply spare |
Compare to Similar Items
Table 3 shows the comparison.
| Model | Downlinks | Uplinks | Power Supply | Fans |
| C9200L-24PXG-4X-E | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) | 4x 10G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
| C9200L-48PXG-4X-E | 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) | 4x 10G fixed uplinks | PWR-C5-1KWAC | Fixed redundant |
| C9200L-24PXG-2Y-E | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) | 2x 25G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
| C9200L-48PXG-2Y-E | 48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G) | 2x 25G fixed uplinks | PWR-C5-1KWAC | Fixed redundant |
C9200L-48PXG-4X-E Specification
C9200L-48PXG-4X-E Specification |
|
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) |
| Uplink configuration | 4x 10G fixed uplinks |
| Default primary AC power supply | PWR-C5-1KWAC |
| Fans | Fixed redundant |
| Software | Network Essentials |
| Chassis Dimensions | 1.73 x 17.5 x 13.8 in
4.4 x 44.5 x 35.0 cm |
| Virtual Networks | 1 |
| Stacking bandwidth | 80 Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | N/A |
| Switching capacity | 392 Gbps |
| Forwarding rate | 291.66 Mpps |
| Mean time between failures (hours) | 337,360 |
