Description
Quick Specs

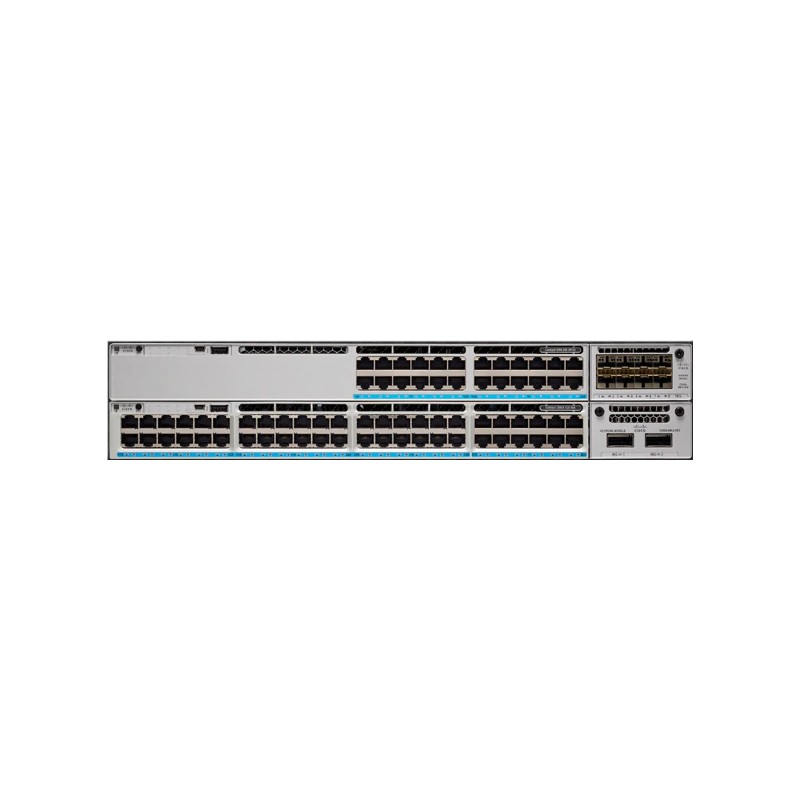

| Product Code | C9300L-24UXG-2Q-E |
| Product Description | Catalyst 9300 24-port fixed uplinks UPoE, 8xmGig, 2X40G uplinks, Network Essentials |
| Total 10/100/1000,Multigigabit copper or SFP Fiber | 24 UPoE 8xmGig |
| Uplink Configuration | 2x 40G fixed uplinks |
| Default AC power supply | 1100W AC |
| Available PoE power | 722W |
| Switching capacity | 352 Gbps |
| Switching capacity with stacking | 672 Gbps |
| Forwarding rate | 261.90 Mpps |
| Forwarding rate with stacking | 500.00 Mpps |
The Accessories
|
Product number |
Description |
|
Network module |
|
|
C9300-NM-4G |
Catalyst 9300 Series 4x 1G Network Module |
|
C9300-NM-4M
|
Catalyst 9300 Series 4x Multigigabit Network Module |
|
C9300-NM-8X |
Catalyst 9300 Series 8x 10G Network Module |
|
C9300-NM-2Q |
Catalyst 9300 Series 2x 40G Network Module |
|
C9300-NM-2Y |
Catalyst 9300 Series 2x 25G Network Module |
|
Stacking accessories |
|
|
STACK-T1-50CM
|
Data stack 50 cm (cable option with C9300 SKUs) |
|
STACK-T1-1M |
Data stack 1m (cable option with C9300 SKUs) |
|
STACK-T1-3M |
Data stack 3m (cable option with C9300 SKUs) |
|
C9300L-STACK-KIT
|
Stack kit for C9300L SKUs only: Two data stack adapters and one data stack cable |
|
STACK-T3-50CM
|
Data stack 50cm cable (default cable with C9300L Stack Kit) |
|
STACK-T3-1M
|
Data stack 1m cable (cable option with C9300L Stack Kit) |
|
STACK-T3-3M
|
Data stack 3m cable (cable option with C9300L Stack Kit) |
Compare to Similar Items
| Product Code | C9300L-24UXG-2Q-A | C9300L-24UXG-2Q-E | C9300L-24UXG-4X-A | C9300L-24UXG-4X-E |
| Product Description | Catalyst 9300 24-port fixed uplinks UPoE, 8xmGig, 2x40G uplinks, Network Advantage | Catalyst 9300 24-port fixed uplinks UPoE, 8xmGig, 2X40G uplinks, Network Essentials | Catalyst 9300 24-port fixed uplinks UPoE, 8xmGig, 4X10G uplinks, Network Advantage | Catalyst 9300 24-port fixed uplinks UPoE, 8xmGig, 4X10G uplinks, Network Essentials |
| Total 10/100/1000,Multigigabit copper or SFP Fiber | 24 UPoE 8xmGig | 24 UPoE 8xmGig | 24 UPoE 8xmGig | 24 UPoE 8xmGig |
| Uplink Configuration | 2x 40G fixed uplinks | 2x 40G fixed uplinks | 4x 10G fixed uplinks | 4x 10G fixed uplinks |
| Default AC power supply | 1100W AC | 1100W AC | 1100W AC | 1100W AC |
| Available PoE power | 722W | 722W | 880W | 880W |
| Switching capacity | 352 Gbps | 352 Gbps | 272 Gbps | 272 Gbps |
| Switching capacity with stacking | 672 Gbps | 672 Gbps | 592 Gbps | 592 Gbps |
| Forwarding rate | 261.90 Mpps | 261.90 Mpps | 202.38 Mpps | 202.38 Mpps |
| Forwarding rate with stacking | 500.00 Mpps | 500.00 Mpps | 440.47 Mpps | 440.47 Mpps |
C9300L-24UXG-2Q-E Specification
C9300L-24UXG-2Q-E Specification |
||
| Product Description | Catalyst 9300 24-port fixed uplinks UPoE, 8xmGig, 2X40G uplinks, Network Essentials | |
| FRU Power Supply | Yes | |
| FRU Fans | Yes | |
| Modular Uplinks | No | |
| Stacking Bandwidth Support | 320 Gbps | |
| Cisco StackPower | No | |
| Catalyst 9800 Embedded WLC | Yes (50 APs) | |
| SD-Access Support | Yes (256 Virtual Networks) | |
| Total 10/100/1000,Multigigabit copper or SFP Fiber | 24 UPoE 8xmGig | |
| Uplink Configuration | 2x 40G fixed uplinks | |
| Default AC power supply | 1100W AC | |
| Available PoE power | 722W | |
| Total number of MAC addresses | 32,000 | |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) | |
| IPv6 routing entries | 16,000 | |
| Multicast routing scale | 8,000 | |
| QoS scale entries | 5,120 | |
| ACL scale entries | 5,120 | |
| Packet buffer per SKU | 16 MB buffer for 24 and 48 port Gigabit Ethernet models | |
| FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models | |
| DRAM | 8 GB | |
| Flash | 16 GB | |
| VLAN IDs | 4094 | |
| Total Switched Virtual Interfaces (SVIs) | 1000 | |
| Jumbo frames | 9198 bytes | |
| Total routed ports per Catalyst 9300 Series stack | 416 | |
| Switching capacity | 352 Gbps | |
| Switching capacity with stacking | 672 Gbps | |
| Forwarding rate | 261.90 Mpps | |
| Forwarding rate with stacking | 500.00 Mpps | |
| Dimensions (H x W x D) Cms | Chassis only | 4.4 x 44.5 x 40.9 |
| W/ Default Power Supply | 4.4 x 44.5 x 48.8 | |
| W/ 1100W Power Supply | 4.4 x 44.5 x 48.8 | |
| Mean Time Between Failures–MTBF (hours) | 291,670 | |
| Acoustic noise
Measured per ISO 7779 and declared per ISO 9296 Bystander positions operating to an ambient temperature of 25°C
|
With AC power supply (with 24 PoE+ ports loaded for C9300 SKUs)
• LpA: 45dB typical, 48 dB max • LwA: 5.6B typical, 5.9B max With AC power supply (with half the number of PoE+ ports loaded for C9300L SKUs) • LpA: 44dB typical, 47 dB max • LwA: 5.5B typical, 5.8B max Typical: Noise emission for a typical configuration Maximum: Statistical maximum to account for variation in p |
|
| Connectors and cabling | • 1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
• Multigigabit-T ports: RJ-45 connectors, 4-pair Cat 5E, Cat 6, Cat 6A UTP cabling • 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling • SFP transceivers: LC fiber connectors (single-mode or multimode fiber) • SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber) • QSFP+ transceivers: MPO and LC fiber connectors (single-mode or multimode fiber) • QSFP+ connector • SFP+ connector • Cisco StackWise stacking ports: copper-based Cisco StackWise cabling • Cisco StackPower: Cisco proprietary power stacking cables • Ethernet management port: RJ-45 connectors, 4-pair Cat 5 UTP cabling • Management console port: RJ-45-to-DB9 cable for PC connections |
|
| Power connectors | • Customers can provide power to a switch by using the internal power at the back of the switch
• Internal power supply connector: The internal power supply is an auto-ranging unit. It supports input voltages between 100 (115 for 1100WAC) and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet |
|
| Safety certifications | • UL 60950-1
• CAN/CSA-C222.2 No. 60950-1 • EN 60950-1 • IEC 60950-1 • AS/NZS 60950.1 • IEEE 802.3 |
|
| Electromagnetic emissions certifications
|
• 47 CFR Part 15
• CISPR22 Class A • EN 300 386 V1.6.1 • EN 55022 Class A • EN 55032 Class A • CISPR 32 Class A • EN61000-3-2 • EN61000-3-3 • ICES-003 Class A • TCVN 7189 Class A • V-3 Class A • CISPR24 • EN 300 386 • EN55024 • TCVN 7317 • V-2/2015.04 • V-3/2015.04 • CNS13438 • KN32 • KN35 • IEC 61000-6-1 • EN 61000-6-1 Additional Certifications for C9300L SKUs: • QCVN 118:2018/BTTTT • CISPR24/25 • CISPR 32 Class A • VCCI-CISPR 32 Class A • EN55035 |
|
| Environmental | Reduction of Hazardous Substances (ROHS) 5 | |
