Description
-

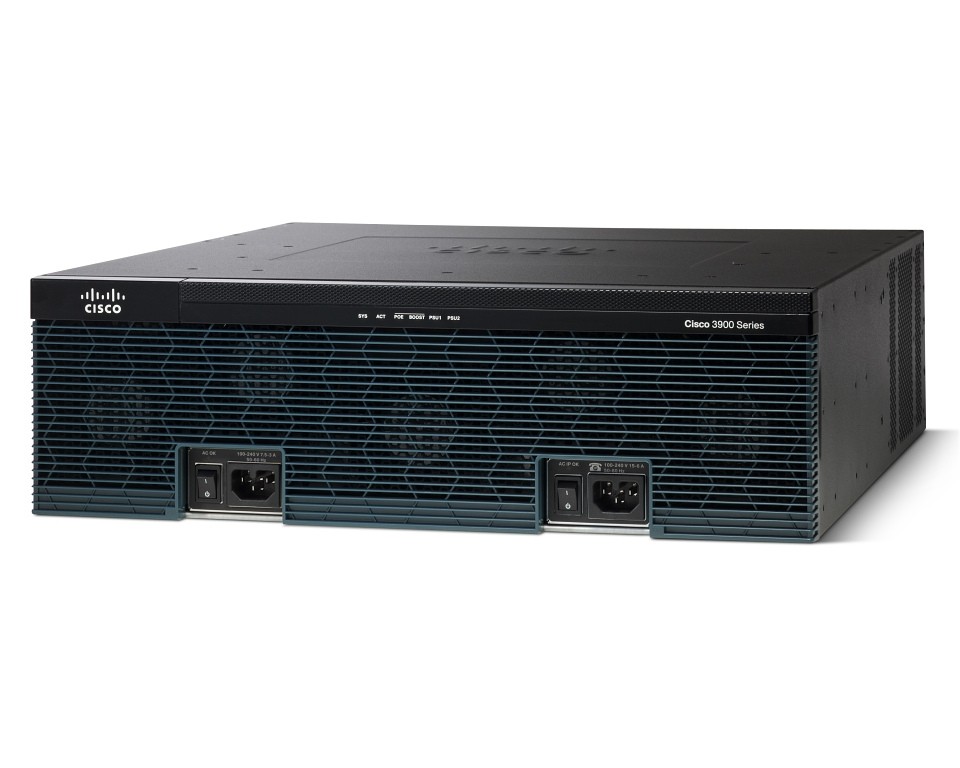

CISCO3925E-SEC/K9 Specification
Manufacturer Cisco Systems, Inc Manufacturer Part Number CISCO3925E-SEC/K9 Bundle Cisco 3925E Security Bundle w/SEC license PAK Form Factor Desktop – modular – 3U Connectivity Technology Wired Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet Network / Transport Protocol IPSec, PPPoE, L2TPv3 Routing Protocol OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) Remote Management Protocol SNMP, RMON Features Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag DRAM Memory 1 GB (installed) / 2 GB (max) Flash Memory 256 MB (installed) / 8 GB (max) LED Status Lights Indicators Link activity, power Connectivity Slots Router Router Interfaces WAN : 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 Management : 1 x console – RJ-45
Management : 1 x console – mini-USB Type B
Serial : 1 x auxiliary – RJ-45
USB : 2 x 4 pin USB Type A
2 x SFP (mini-GBIC)
Expansion Slot(s) 3 (total) / 3 (free) x EHWIC 3 (total) / 3 (free) x PVDM
2 (total) / 1 (free) x CompactFlash Card
2 (total) / 2 (free) x service module (SM)
Power Supply Power Device Power supply – internal Voltage Required AC 120/230 V ( 50/60 Hz ) Dimensions / Weight / Miscellaneous Approximate Width 18.7 in Depth 17.2 in Height 5.2 in Weight 39 lbs Compliant Standards CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438, NEBS System software IOS Software Included Cisco IOS Security
