Description
Overview (CP-7861-K9)
The Cisco IP Phone 7861 is designed for small to large businesses, seeking high-quality, full-featured VoIP communications.
Quick Specs

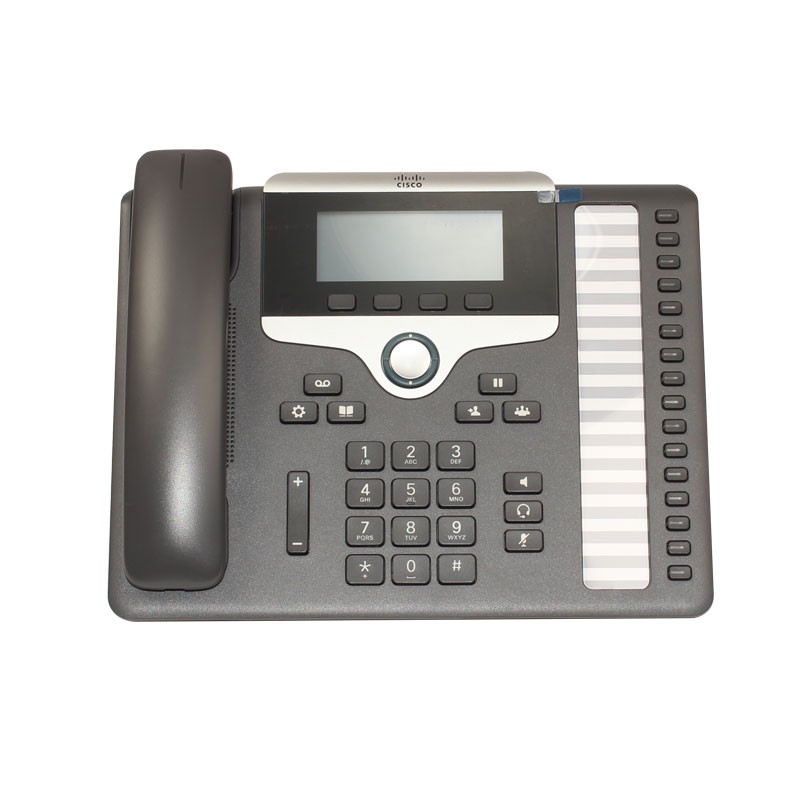

Figure 1 shows the appearance of the CP-7861-K9.
Table 1 shows the Quick Spec.
Product Code | CP-7861-K9 |
Screen | 396 x 162 pixel (3.5 in. / 89 mm) |
Ethernet Switch | 10/100 |
Programmable Line Keys | 16 |
Full Duplex Speakerphone | Yes |
Number of Line Keys | 16 |
Wideband Audio | Yes |
PoE Class | 1 |
Third-party Call Control | Yes |
Replaceable Bezel | Yes |
Package Weight | 1.7 Kg |
Product Details
Before you use the Cisco IP Phone 7861, it should be connected to the corporate IP telephony network.
Figure 2 shows the bottom ports of this IP Phone.
Note:
① AC power wall plug (optional) ② Network port (10/100 SW) connection. IEEE 802.3af power enabled ③ Access port (10/100 PC) connection
④ Auxiliary port (optional) ⑤ Handset connection ⑥ Analog headset connection (optional)
Figure 3 shows the buttons and hardware.
Note:
① Handset light strip ② Phone screen ③ Softkey buttons ④ Programmable feature buttons ⑤ Navigation and Select button ⑥ Hold/Resume button
⑦ Conference button ⑧ Transfer button ⑨ Speakerphone button ⑩ Headset button ⑪ Mute button ⑫ Keypad ⑬ Volume button
⑭ Contacts button ⑮ Applications button ⑯ Messages button ⑰ Handset
Compare to Similar Items
Table 2 shows the comparison of Cisco IP Phone 7811, 7821, 7841 and 7861.
Model | CP-7811-K9 | CP-7821-K9 | CP-7841-K9 | CP-7861-K9 |
Ethernet switch | 10/100 | 10/100 | 10/100/1000 | 10/100 |
Programable line keys | 0 | 2 | 4 | 16 |
Number of Line Keys | 0 | 2 | 4 | 16 |
Full duplex speakerphone | Yes (narrowband) | Yes | Yes | Yes |
PoE Class | 1 | 1 | 1 | 1 |
Third-party call control | Planned | Yes | Yes | Yes |
Replaceable bezel | N/A | Yes | Yes | Yes |
Datasheet Download
Cisco 7800 IP Phone Datasheet.pdf
