Description
EX2300-24P Overview
EX2300-24P is a Juniper EX2300 switch with 24-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately). EX2300 Ethernet Switch delivers a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. With a small, 1 U footprint, the EX2300 is perfect for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.
Quick Spec

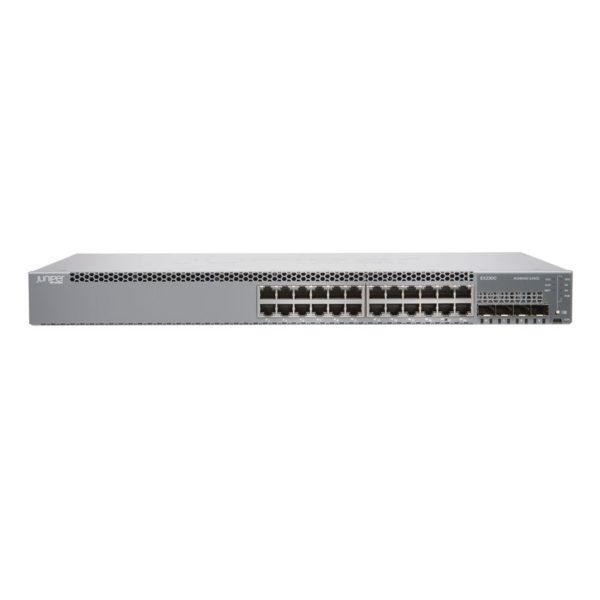

Figure 1 shows the appearance of EX2300-24P.
Table 1 shows the quick spec.
| SKU | EX2300-24P |
| Backplane speed | 80 Gbps |
| Data rate | 128 Gbps |
| Throughput | 95 Mpps (wire speed) |
| Ports | 24-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
| Dimensions (W x H x D) | 17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm)
1 rack unit |
Product Details
Figure 2 shows the front panel of EX2300-24P.
Figure 3 shows the back panel of EX2300-24P.
Juniper EX2300 switches provide these features:
1. Innovative Design
Innovative, cost-effective switch design reduces cost and complexity, while unified management and automation tools consolidate system monitoring.
2. Virtual Chassis
With Virtual Chassis technology, up to four interconnected EX2300 switches operate as a single logical device, reducing operational expenses and simplifying management.
3. Eight QoS Queues
Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.
4. Always-On Reliability
Based on a field-proven Juniper architecture and the Junos OS, EX Series switches deliver always-on reliability for every application.
5. Centralized Management with Junos Fusion
When deployed as satellite devices in a Junos Fusion Enterprise environment, large numbers of EX2300 switches can be managed from a single interface.
6. High Port Densities and Wire-Speed Performance
High 1GbE and 10GbE port densities and wire-speed performance provide flexibility when creating network topologies.
