EX2300-C-12P Overview
The Juniper Networks EX2300-C Ethernet Switch delivers a compact, silent, and power-efficient platform for low-density branch deployments and commercial access or enterprise workgroup environments outside the wiring closet.
Quick Specs

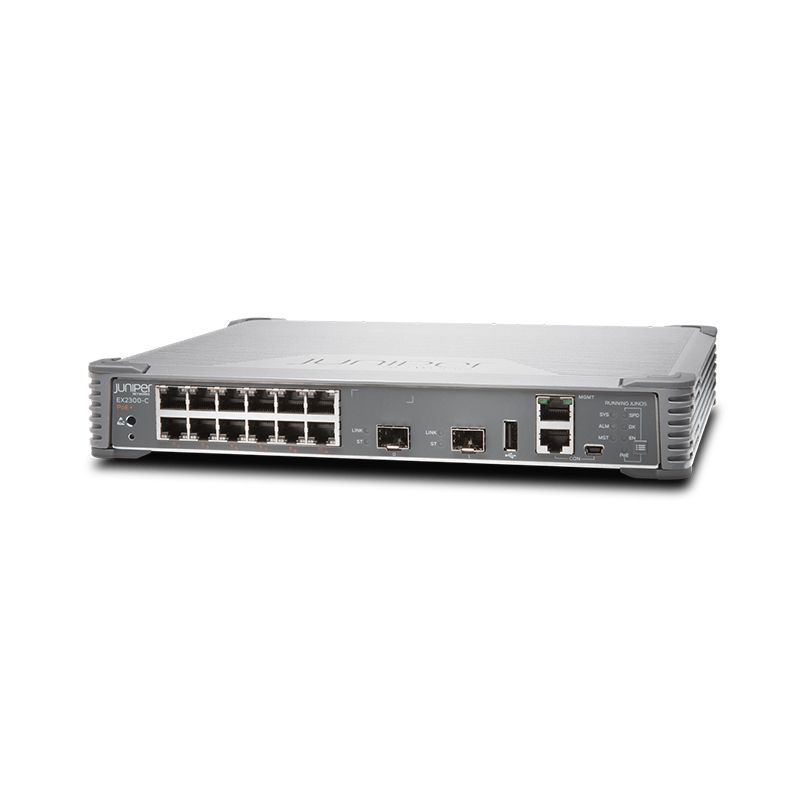

Figure 1 shows the appearance of EX2300-C-12P.
Table 1 shows the Quick Specs.
| Product Code | EX2300-C-12P |
| Device Type | Switch – 12 ports – L3 – managed |
| Enclosure Type | Rack-mountable 1U |
| Flash Memory | 2 GB |
| Power Device | Internal power supply |
| Power Provided | 170 Watt |
Product Details
Figure 2 shows the front panel of EX2300-C-12P.
Figure 3 shows the back panel of EX2300-C-12P.
EX2300-C-12P provides these features:
Junos Fusion Enterprise technology
Junos Fusion Enterprise technology provides automated network configuration and simplifies scalability for medium to large enterprise networks. Using the Juniper Networks EX9200 line of programmable switches as aggregation devices and EX2300-C switches as satellite nodes, Junos Fusion Enterprise technology can be deployed across a building to connect large numbers of switches in a fabric that can be managed as a single device.
Virtual Chassis technology
The EX2300-C supports Juniper’s unique Virtual Chassis technology, enabling up to four interconnected EX2300-C switches to be managed as a single logical device and delivering a scalable, pay-as-you-grow solution for expanding network environments. The EX2300-C can also be connected to an existing Virtual Chassis configuration composed of EX2300 switches.
Simplified management and operations
Junos Fusion Enterprise dramatically simplifies EX2300-C management by enabling a large number of the switches to be managed from a single management interface when deployed as satellite devices. With features such as plugand-play deployment and rolling software upgrades, Junos Fusion Enterprise eliminates the need to individually manage every access switch in the enterprise network, leading to lower operational costs and overall lower TCO.
Easy provisioning
Auto-configuration and Auto-Image Install features allow the switches to be configured and imaged over the network using the Dynamic Host Configuration Protocol (DHCP) message exchange process. These features eliminate the need to stage devices prior to deployment, dramatically reducing operational expenses. Auto-configuration and Auto Image Install allow new branches and retail stores to rapidly deploy their networks, and they also enable software upgrades and security fixes to be performed at the touch of a button. A zero touch provisioning (ZTP) feature allows a DHCP server to push configuration details and software images to multiple switches at boot-up time.
