Description
-

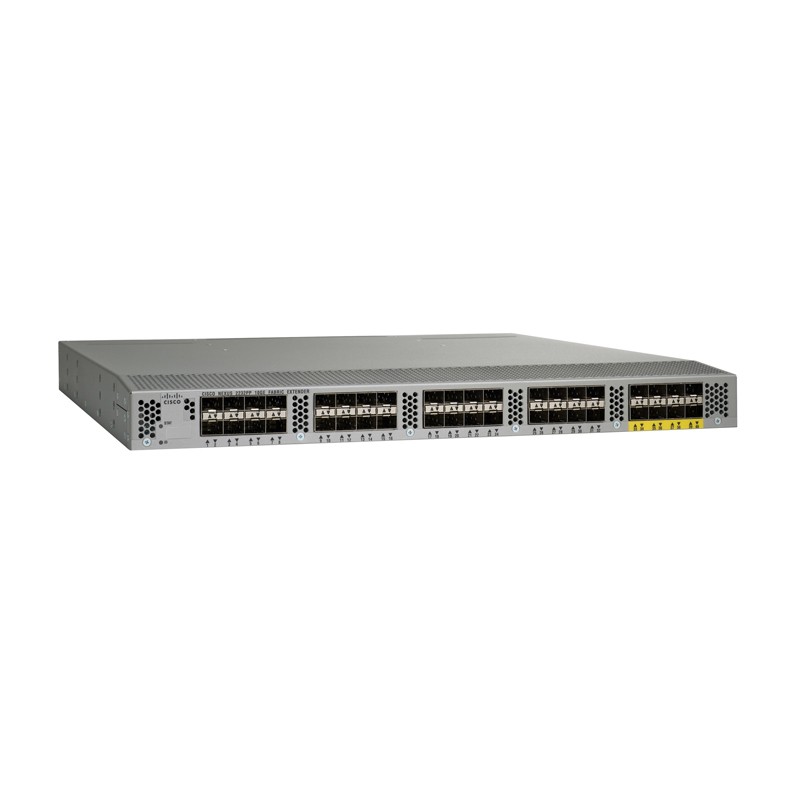

N2K-C2232PP Specification
Type Cisco Nexus 2232PP Fabric extender host interfaces - 32
Fabric extender host interface type - 1/10 Gigabit Ethernet ports SFP/SFP+ (supported transceiver and cables include Twinax SFP-H10GB-CU1M, SFP-H10GB-CU3M, SFP-H10GB-CU5M, SFP-H10GB-ACU7M, and SFP-H10GB-ACU10M; SFP+ SFP-10G-SR, SFP-10G-SR-S, SFP-10G-LR, and SFP-10G-LR-S; and SFP GLC-T, GLC-SX-MM, GLC-LH-SM, SFP-GE-T, SFP-GE-S, and SFP-GE-L)
- AOC cables:
FP-10G-AOC1M,
SFP-10G-AOC2M, SFP-10G-AOC3M, SFP-10G-AOC5M, SFP-10G-AOC7M, and SFP-10G-AOC10M
Fabric extender fabric interfaces - 8
Fabric extender fabric interface type - Fiber: Cisco Fabric Extender Transceiver (FET-10G) and SFP+ optics (SFP-10G-SR, SFP-10G-SR-S, SFP-10G-LR, and SFP-10G-LR-S)
- Copper: 10 Gigabit Ethernet SFP+ passive Twinax copper cables (SFP-H10GB-CU1M, SFP-H10GB-CU3M, and SFP-H10GB-CU5M) and active Twinax copper cables (SFP-H10GB-ACU7M and SFP-H10GB-ACU10M)
- AOC cables:
SFP-10G-AOC1M,
SFP-10G-AOC2M, SFP-10G-AOC3M, SFP-10G-AOC5M, SFP-10G-AOC7M, and SFP-10G-AOC10M - AOC breakout cables: QSFP-4X10G-AOC1M, QSFP-4X10G-AOC2M, QSFP-4X10G-AOC3M, QSFP-4X10G-AOC5M, QSFP-4X10G-AOC7M, and QSFP-4X10G-AOC10M
- Copper breakout cables: QSFP-4SFP10G-CU1M, QSFP-4SFP10G-CU3M, QSFP-4SFP10G-CU5M, QSFP-4x10G-AC7M, and QSFP-4x10G-AC10M
- Distance between Cisco Nexus 2000 Series Fabric Extender and Cisco Nexus 5000 or 6000 Series Switch: Up to 10 km (300m for FCoE traffic)
Fabric speed - 80 Gbps in each direction (160-Gbps full duplex)
Oversubscription - 4:1
Performance - Hardware forwarding at 800Gbps or 595 mpps
FCoE - FCoE supported
Cisco parent switch - Cisco Nexus 5000 Series
- Cisco Nexus 6000 Series
- Cisco Nexus 7000 Series
- Cisco Nexus 9000 Series
Minimum software - Cisco NX-OS Software Release 4.2 (Cisco Nexus 5000 Series)
- Cisco Nexus 6000 Series running Cisco NX-OS Software Release 6.0 and later
- Cisco NX-OS Software Release 5.2 (Cisco Nexus 7000 Series)
- Cisco NX-OS Software Release 6.1 (Cisco Nexus 9000 Series)
Dimensions (H x W x D) - 1.72 x 17.3 x 17.7 in.
(4.37 x 43.94 x 44.96 cm)
Weight - 18.3 lb (8.3 kg)
Environment - Operating temperature:
32 to 104°F (0 to 40°C) - Nonoperating temperature: -4 to 158°F (-20 to 70°C)
- Humidity: 5 to 95 percent (noncondensing)
- Altitude: 0 to 10,000 ft (0 to 3000m)
Power supply - N2200-PAC-400W, N2200-PAC-400W-B, N2200‑PDC-400W, and N2200-PDC-350W-B
Fan tray - N2K-C2232-FAN and N2K-C2232-FAN-B
Typical input operating power - 210W
(maximum 270W)
Input current - 2.5A (typical); 4.1A (maximum)
Note: Input current listed for 110V; divide by 2 for 220V
- Supply will surge on AC power-up for a fraction of a second beyond this rating
Output current - 20A (typical); 33A (maximum)
Heat dissipation - 806 BTU/hour (typical); 1330 BTU/hour (maximum)
Regulatory compliance Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC. Safety - UL 60950-1
- CAN/CSA-C22.2 No. 60950-1EN 60950-1
- IEC 60950-1AS/NZS 60950-1GB4943
EMC: Emissions - 47CFR Part 15 (CFR 47) Class A
- AS/NZS CISPR22 Class A
- CISPR22 Class A
- EN55022 Class A
- ICES003 Class A
- VCCI Class A
- EN61000-3-2
- EN61000-3-3
- KN22 Class A
- CNS13438 Class A
EMC: Immunity - EN50082-1
- EN61000-6-1
- EN55024
- CISPR24
- EN300386
- KN 61000-4 series
RoHS The Cisco Nexus 2148T is RoHS-5 compliant, and the Cisco Nexus 2224T, 2248TP, 2232PP, 2248PQ, 2232TM, and 2232TM-E are RoHS-6 compliant. Network Equipment Building Standards (NEBS) The Cisco Nexus 2248TP, 2248TP-E, and 2232PP meet NEBS level-3 standards (hardware revision 3). Layer 2 features - Layer 2 VLAN trunks
- IEEE 802.1Q VLAN encapsulation
- Cisco EtherChannel technology on uplinks
- PortChannel on server ports on Cisco Nexus 2200 platforms
- Advanced PortChannel hashing
- Jumbo frames on all ports (up to 9216 bytes)
- Pause frames (Priority Flow Control [PFC] and IEEE 802.3x)
- Private VLANs (promiscuous only on uplinks)
- Local multicast replication on Cisco Nexus 2200 platform (8000 entries)
- Autonegotiation to 1000BASE-T; full duplex on host interfaces
Enhanced Ethernet - DCB (Cisco Nexus 2232PP)
Quality of service (QoS) - Layer 2 IEEE 802.1p (class of service [CoS])
- 8 hardware queues per port (Cisco Nexus 2200 platforms), or 4 hardware queues per port (Cisco Nexus 2148T)
- Per-port QoS configuration
- Local policing on Cisco Nexus 2200 platform (64 policers)
- CoS trust
- Configurable tail-drop threshold on Cisco Nexus 2200 platforms
- Egress strict-priority queuing
- Egress port-based scheduling: Weighted Round Robin (WRR)
High availability - Hot-swappable field-replaceable power supplies and fan modules
- 1:1 power redundancy
- Uplink traffic management through Cisco EtherChannel hashing or static port pinning
- vPCs for dual-homed active-active connectivity across two Cisco Nexus 5000 or 6000 Series Switches
- vPCs for dual-homed straight-through NIC connectivity across two Cisco Nexus 2000 Series Fabric Extenders
- ISSU
Security - Local classification (256 access control list [ACL] entries)
Management - Fabric extender management using in-band management
- Locator and beacon LEDs on front and back of chassis (locator beacons on the front and rear of the chassis help reduce errors when the equipment is serviced)
- Per-port locator and beacon LEDs
- Syslog
- Simple Network Management Protocol Versions 1, 2, and 3 (SNMP v1, v2, and v3)
- Enhanced SNMP MIB support
- XML (NETCONF) support
- Remote Monitoring (RMON)
- Cisco Discovery Protocol Versions 1 and 2
- Cisco Switched Port Analyzer (SPAN) source on server ports
- Power-on self-test (POST)
- Cisco Generic Online Diagnostics (GOLD): Ethernet
- Comprehensive bootup diagnostic tests
- CiscoWorks
- Cisco Data Center Network Manager (DCNM); the Cisco Nexus 2000 Series is managed through the parent Cisco Nexus switch using DCNM and standard SNMP, XML interface, and command-line interface (CLI)
Configuration MIBs - ENTITY-MIB
- IF-MIB
- FABRIC-EXTENDER MIB
- CISCO-ENTITY-EXT-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- CISCO-ENTITY-SENSOR-MIB
- CISCO-ETHERNET-FABRIC-EXTENDER-MIB
Monitoring MIBs - RMON-MIB
Industry standards - IEEE 802.1p: CoS prioritization
- IEEE 802.1Q: VLAN tagging
- IEEE 802.3: Ethernet
- IEEE 802.3ae: 10 Gigabit Ethernet
- SFF 8431 SFP+ support
- IEEE 802.3u 100BASE-TX specification
- IEEE 802.3ab 1000BASE-T specification
- IEEE 802.3an 10GBASE-T
- 10GBASE-SR
- 10GBASE-LR
- RMON
- SFF-8461
