Description

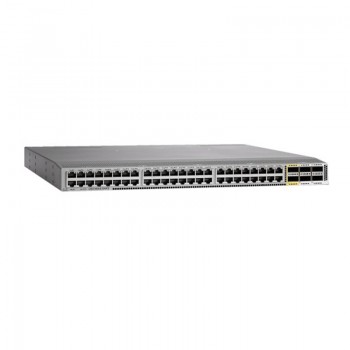

N2K-C2348TQ Specification |
|
| Type | Cisco Nexus 2348TQ |
| Fabric extender host interfaces | 48 |
| Fabric extender host interface type | 48 100M/1/10GBASE-T ports: RJ-45 connectors |
| Fabric extender fabric interfaces | 6 x 40 Gigabit Ethernet QSFP (24 x 10 Gigabit Ethernet) |
| Fabric extender fabric interface type | Fiber: QSFP-40G-SR-BD, QSFP-40G-SR4,QSFP-40G-SR4-S, QSFP-40G-LR4, QSFP-40G-LR4-S, and QSFP-40G-CSR4-S
Copper: 40 Gigabit Ethernet QSFP+ active Twinax cables (QSFP-H40G-ACU7M and QSFP-H40G-ACU10M (no passive cables)
AOC cables: QSFP-H40G-AOC1M, QSFP-H40G-AOC2M, QSFP-H40G-AOC3M, QSFP-H40G-AOC5M, QSFP-H40G-AOC7M, QSFP-H40G-AOC10M, and QSFP-H40G-AOC15M
AOC breakout cables: QSFP-4X10G-AOC1M, QSFP-4X10G-AOC2M, QSFP-4X10G-AOC3M, QSFP-4X10G-AOC5M, QSFP-4X10G-AOC7M, and QSFP-4X10G-AOC10M
Copper breakout cables: QSFP-4x10G-AC7M and QSFP-4x10G-AC10M (no passive cables) Distance between Cisco Nexus 2300 fabric extender and Cisco Nexus 5500 switch is up to 10 km (up to 3 km for FCoE traffic), and for the Cisco Nexus 5600 switch or 6000 Series Switch the distance is up to 3 km (300m for FCoE traffic)
All equivalent S-class optics are supported Cisco 40GBASE QSFP to SFP+/SFP adapter (CVR-QSFP-SFP10G) |
| Fabric speed | Up to 240 Gbps in each direction (480-Gbps full duplex) |
| Oversubscription | Up to 2:1 |
| Performance | Hardware forwarding at 1440 Gbps or 2160 mpps |
| FCoE | FCoE support up to 30m with Category 6a and 7 cables (Cisco Nexus 5500 and 5600 platforms and 6000 Series) |
| Cisco parent switch | Cisco Nexus 5500 and 5600 platforms
Cisco Nexus 6000 Series Cisco Nexus 7000 Series and 7700 platform Cisco Nexus 9300 and 9500 Series |
| Minimum software | Cisco NX-OS Release 7.1(0)N1(1) (Cisco Nexus 5500 and 5600 platforms and 6000 Series)Cisco NX-OS Release 7.2.0D1(1)(Cisco Nexus 7000 Series and 7700 platform)Cisco NX-OS Release 7.0(3)I2(1) (Cisco Nexus 9300 Series and 9500 platform) |
| Dimensions (H x W x D) | 1.72 x 17.3 x 17.07 in. (4.37 x 43.94 x 43.36 cm) |
| Weight | 17.7 lbs. (8.0 kg) |
| Environment | Operating temperature: 32 to 131°F (0 to 55°C)
Non-operating temperature: -40 to 158°F (-40 to 70°C) Humidity: 5 to 95 percent (noncondensing) Altitude: 0 to 10,000 ft. (0 to 3000m) |
| Power supply | N2200-PAC-400W, N2200-PAC-400W-B, N2200-PDC-400W, N2200-PDC-350W-B, NXA-PHV-500W, and NXA-PHV-500W-B |
| Fan modules | NXA-FAN-30CFM-F and NXA-FAN-30CFM-B (N+1 redundancy = 3 fans) |
| Typical input operating power | 280W at 30m (maximum 350W) |
| Heat dissipation | 952 BTU/hour (typical); 1190 BTU/hour (maximum) |
| Regulatory Compliance | Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC |
| Safety |
|
| EMC: Emissions |
|
| EMC: Immunity |
|
| RoHS | The Cisco Nexus 2348UPQ, 2348TQ, and 2332TQ are RoHS-6 compliant |
| Network Equipment Building Standards (NEBS) | The Cisco Nexus 2348UPQ, 2348TQ, and 2332TQ meet NEBS level-3 standards (hardware revision 3) (not currently supported) |
| Description | Specification |
| Layer 2 features |
|
| Enhanced Ethernet |
|
| Quality of service (QoS) |
|
| High availability |
|
| Security |
|
| Management |
|
| Configuration MIBs |
|
| Monitoring MIBs |
|
| Industry standards |
|
