Description

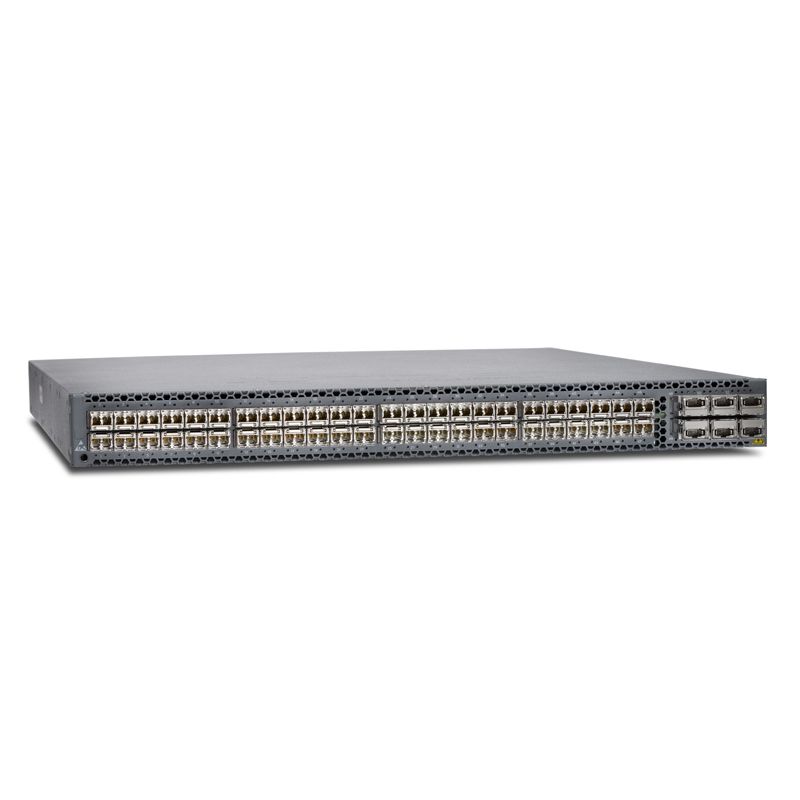

QFX5100-48S-AFO Overview
QFX5100. 48X10G+6X40G. 2 AC. FB
The highly flexible, high-performance Juniper Networks QFX5100 line of switches provides the foundation for the dynamic data center. As a critical enabler for IT transformation, the data center network supports cloud and software-defined networking (SDN) adoption, as well as rapid deployment and delivery of applications. Mission-critical applications, network virtualization, and integrated or scale-out storage are driving the need for more adaptable networks. With its diverse set of deployment options, including fabric, Layer 3, and spine and leaf, the QFX5100 is the universal building block for data center switching architectures, enabling users to easily adapt as requirements change over time.
Quick Spec
Table 1 shows the quick spec.
| Model | QFX5100-48S-AFO |
| Clock Speed | 1.5 GHZ |
| Processor Brand | Intel |
| Processors Installed | 1 |
| RAM Installed | 8 GB |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3x, Shaped Deficit Weighted Round-Robin (SDWRR) |
| Features | 12 MB shared buffer, Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), Cut-through, Data Center Bridging (DCB), Data Center Bridging Exchange (DCBX) support, DHCP relay, DHCP server, DHCP snooping, DoS attack prevention, Dynamic ARP Inspection (DAI), FCoE forwarding, Flow control, Graceful Route Engine Switchover (GRES), High Availability, IGMP snooping, IPv4 support, IPv6 support, Loop prevention, Low-latency queuing (LLQ), MAC address filtering, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Non-Stop Bridging (NSB), Non-Stop Routing (NSR), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, RARP support, Redundant hot swappable fans, Redundant trunk group (RTG), sFlow, SNTP support, Spanning Tree Protocol (STP) support, Store and forward, Strict Priority Queuing (SPQ), Trivial File Transfer Protocol (TFTP) support, Trunking, Tunneling, VLAN Spanning Tree Protocol (VSTP), VLAN support, VPN support, Weighted Random Early Detection (WRED) |
| Fibre Channel | FC-BB-5, FC-BB-6 |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 288K entries |
| Manageable | Yes |
| Ports | 48 |
| Product Type | Switch |
| Remote Management | CLI, RMON, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet |
| Routing Protocol | Bidirectional Forwarding Detection (BFD), CIDR, ECMP, IGMP, IGMPv2, IGMPv3, MSDP, OSPF, PIM-SM, RIP, RIP-2, Static IP routing, VRRP |
| Subcategory | Network hubs and switches |
| Switching Type | 10 Gigabit Ethernet |
| Interface Provided | 1 x console management, 1 x RJ-45 management, 1 x SFP management, 1 x USB management, 48 x SFP+, 6 x QSFP+ (breakout compatible) |
| Port Quantity | 48 |
| Port Type | 1 Gigabit SFP/ 10 Gigabit SFP+ |
| Ports Type (2nd) | 40 Gigabit QSFP+ (breakout compatible) |
