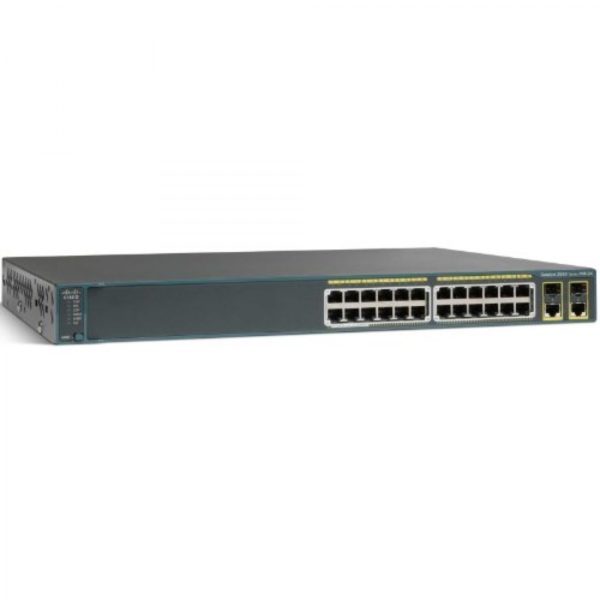

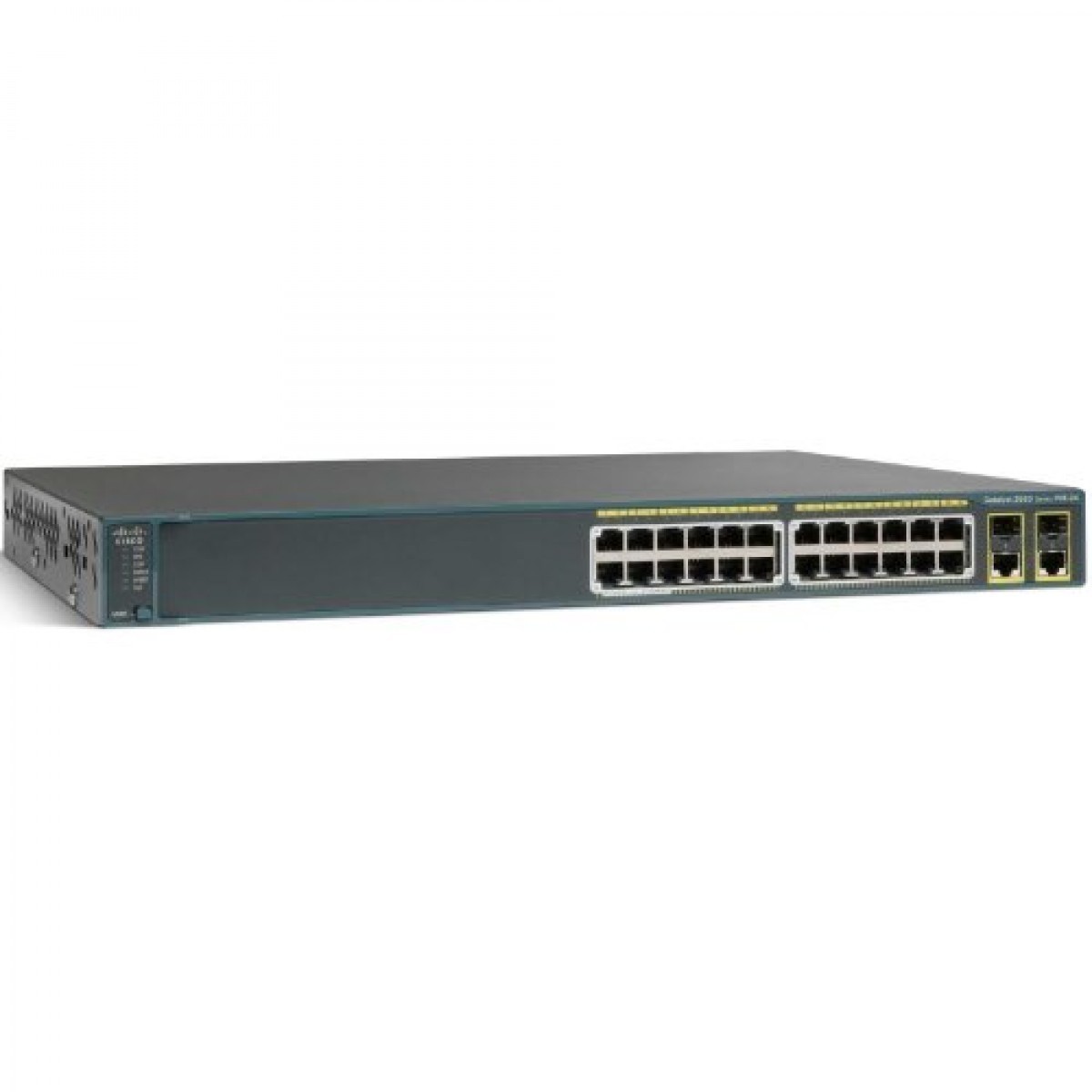

WS-C2960+24LC-S Specification
|
| Configurations |
| 10/100 Ethernet Interfaces |
24 |
| Uplink Interfaces |
2 (SFP or 1000BASE-T) |
| Cisco IOS Software Feature Set |
LAN Lite |
| Available PoE Power |
123W (8 ports up to 15.4W) |
| Hardware |
| Flash memory |
64 MB |
| DRAM |
128 MB |
| Performance and Scalability |
| Forwarding bandwidth |
16 Gbps |
| Maximum active VLANs |
64 |
| VLAN IDs available |
4K |
| Maximum transmission unit (MTU) – L3 packet |
9000 bytes |
| Jumbo frame – Ethernet frame |
9018 bytes |
| Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second |
6.5 |
| Mechanical |
| Dimensions (H x W x D) |
1.73 x 17.70 x 13.07 in (4.4 x 45.0 x 33.2 cm) |
| Weight |
10 lb (4.5 Kg) |
| Package Weight |
20.26 lb (9.19 Kg) |
| Environmental Ranges |
| Operating temperature up to 5000 ft (1500 m) |
23º to 113ºF
(-5º to 45ºC) |
| Operating temperature up to 10,000 ft (3000 m) |
23º to 104ºF
(-5º to 40ºC) |
| Short-term exception at sea level* |
23º to 131ºF
(-5º to 55ºC) |
| Short-term exception up to 5000 feet (1500 m)* |
23º to 122ºF
(-5º to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m)* |
23º to 113ºF
(-5º to 45ºC) |
| Short-term exception up to 13,000 feet (4000 m)* |
23º to 104ºF
(-5º to 40ºC) |
| Storage temperature up to 15,000 feet (4573 m) |
23º to 158ºF
(-25º to 70ºC) |
| Operating altitude |
Up to 10,000 Feet
(Up to 3,000 Meters) |
| Storage altitude |
Up to 13,000 Feet
(Up to 4,000 Meters) |
| Operating relative humidity |
10% to 95% noncondensing |
| Storage relative humidity |
10% to 95% noncondensing |
| Sound Pressure, dBA |
Typical, LpAm: 43
Maximum, LpAD: 46 |
| Sound Power, dbA |
Typical, LwA: 53
Maximum, LwAD: 56 |
| MTBF in thousands of hours |
498 |
| Connectors and Interfaces |
| Ethernet Interfaces |
- 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
- 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
- 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
- 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
|
| Indicator LEDs |
- Per-port status: Link integrity, disabled, activity, speed, and full duplex
- System status, Port Status, PoE, RPS, link duplex, and link speed
|
| Console |
Cisco Catalyst console cables:
- CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
|
| Power |
- The internal power supply is an auto-ranging unit and supports input voltages between 100 and 240V AC.
- Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
- The Cisco RPS connector offers connection for an optional Cisco RPS 2300 that uses AC input and supplies DC output to the switch.
- Only the Cisco RPS 2300 (model PWR-RPS2300) should be attached to the redundant-power-system receptacle.
|
| Management and Standards Support |
| Management |
- BRIDGE-MIB
- CISCO-CABLE-DIAG-MIB
- CISCO-CDP-MIB
- CISCO-CLUSTER-MIB
- CISCO-CONFIG-COPY-MIB
- CISCO-CONFIG-MAN-MIB
- CISCO-DHCP-SNOOPING-MIB
- CISCO-ENTITY-VENDORTYPE-OID-MIB
- CISCO-ENVMON-MIB
- CISCO-ERR-DISABLE-MIB
- CISCO-FLASH-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-IMAGE-MIB
- CISCO-IP-STAT-MIB
- CISCO-LAG-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-PAGP-MIB
- CISCO-PING-MIB
- CISCO-POE-EXTENSIONS-MIB
- CISCO-PORT-QOS-MIB
- CISCO-PORT-SECURITY-MIB
- CISCO-PORT-STORM-CONTROL-MIB
- CISCO-PRODUCTS-MIB
- CISCO-PROCESS-MIB
- CISCO-RTTMON-MIB
- CISCO-SMI-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TC-MIB
- CICSO-TCP-MIB
- CISCO-UDLDP-MIB
- CISCO-VLAN-IFTABLE
- RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- ENTITY-MIB
- ETHERLIKE-MIB
- IEEE8021-PAE-MIB
- IEEE8023-LAG-MIB
- IF-MIB
- INET-ADDRESS-MIB
- OLD-CISCO-CHASSIS-MIB
- OLD-CISCO-FLASH-MIB
- OLD-CISCO-INTERFACES-MIB
- OLD-CISCO-IP-MIB
- OLD-CISCO-SYS-MIB
- OLD-CISCO-TCP-MIB
- OLD-CISCO-TS-MIB
- RFC1213-MIB
- RMON-MIB
- RMON2-MIB
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-TARGET-MIB
- SNMPv2-MIB
- TCP-MIB
- UDP-MIB
- ePM MIB
|
| Standards |
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1p CoS Prioritization
- IEEE 802.1Q VLAN
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab (LLDP)
- IEEE 802.3ad
- IEEE 802.3af
- IEEE 802.3ah (100BASE-X single/multimode fiber only)
- IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- RMON I and II standards
- SNMP v1, v2c, and v3
|
| RFC compliance |
- RFC 768 – UDP
- RFC 783 – TFTP
- RFC 791 – IP
- RFC 792 – ICMP
- RFC 793 – TCP
- RFC 826 – ARP
- RFC 854 – Telnet
- RFC 951 – Bootstrap Protocol (BOOTP)
- RFC 959 – FTP
- RFC 1112 – IP Multicast and IGMP
- RFC 1157 – SNMP v1
- RFC 1166 – IP Addresses
- RFC 1256 – Internet Control Message Protocol (ICMP) Router Discovery
- RFC 1305 – NTP
- RFC 1492 – TACACS+
- RFC 1493 – Bridge MIB
- RFC 1542 – BOOTP extensions
- RFC 1643 – Ethernet Interface MIB
- RFC 1757 – RMON
- RFC 1901 – SNMP v2C
- RFC 1902-1907 – SNMP v2
- RFC 1981 – Path MTU Discovery for IPv6
- FRC 2068 – HTTP
- RFC 2131 – DHCP
- RFC 2138 – RADIUS
- RFC 2233 – IF MIB v3
- RFC 2373 – IPv6 Aggregatable Addrs
- RFC 2460 – IPv6
- RFC 2461 – IPv6 Neighbor Discovery
- RFC 2462 – IPv6 Autoconfiguration
- RFC 2463 – ICMP IPv6
- RFC 2474 – Differentiated Services (DiffServ) Precedence
- RFC 2597 – Assured Forwarding
- RFC 2598 – Expedited Forwarding
- RFC 2571 – SNMP Management
- RFC 3046 – DHCP Relay Agent Information Option
- RFC 3376 – IGMP v3
- RFC 3580 – 802.1X RADIUS
|
| Voltage and Power Ratings |
| Voltage (Autoranging) |
100 to 240 VAC |
| Current (Amperes) |
1.4 – 0.8 |
| Frequency |
50 to 60Hz |
| Power Rating (kVA) |
0.16 |
| DC Input Voltages (RPS Input) |
2A at 12V (3A at -52V) |
| Power Consumption |
0% traffic: 25.9
10% traffic: 25.7
100% traffic: 26.1
ATIS weighted average: 25.8 |
| Safety and Compliance |
| Regulatory Compliance |
Products should comply with CE Marking per directives 2004/108/EC and 2006/95/EC |
| Safety |
UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
IEC 60950-1 Second Edition
AS/NZS 60950-1 |
| EMC – Emissions |
47CFR Part 15 (CFR 47) Class A
AS/NZS CISPR22 Class A
CISPR22 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
KN22 Class A
CNS13438 Class A |
| EMC – Immunity |
EN55024
CISPR24
EN300386
KN24 |
| Environmental |
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
