Description
-

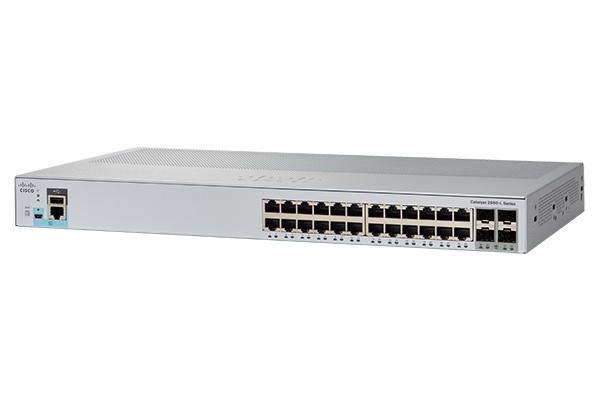

WS-C2960L-24TS-LL Specification
Configurations 10/100/1000 Ethernet Ports 24 Uplink Interfaces 4 SFP Available PoE Power – Fanless Y Dimensions (H x D x W) 1.73 x 9.45 x 17.5 in. (4.4 x 24 x 44.5 cm) Net Weight 6.61 lb (3.0 kg) Console Ports RJ45 Ethernet 1 USB mini-B 1 USB-A port for storage and Bluetooth console 1 Memory and Processor CPU ARMv7 800 MHz DRAM 512 MB Flash memory 256 MB Performance Forwarding bandwidth 28 Gbps Switching bandwidth 56 Gbps Forwarding rate (64-byte L3 packets) 41.67 Mpps Unicast MAC addresses 8K Maximum active VLANs 64 VLAN IDs available 4094 Maximum STP instances 64 Maximum SPAN sessions 1 MTU-L3 packet 9198 bytes Jumbo Ethernet frame 10,240 bytes MTBF in hours (Data) 2,412,947 MTBF in hours (PoE) 909,838 Environment Operating temperature Up to 5,000 ft 23ºF to 113ºF (–5ºC to 45ºC) Up to 10,000 ft 23ºF to 104ºF (–5ºC to 40ºC) Operating altitude 10,000 ft (3000m) Operating relative humidity 5% to 90% at 40ºC Storage temperature –13º to 158ºF (–25º to 70ºC) Storage altitude 15,000 ft (4500m) Storage relative humidity 5% to 95% at 65ºC Storage altitude Minimum ambient temperature for cold start is 0°C (32°F) Electrical Data Voltage (autoranging) 110 to 220V AC in Frequency 50 to 60 Hz Current 0.20A to 0.33A Power rating (maximum consumption) 0.06 kVA Power consumption (watts) 0% traffic
10% traffic
100% traffic
Weighted average
19.4
26.5
26.5
24.1
Safety and Compliance Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 EMC: emissions 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A EMC: immunity EN55024, CISPR24, EN300386, KN24 Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU Telco Common Language Equipment Identifier (CLEI) code U.S. government certifications USGv6 and IPv6 Ready Logo Connectors and Interfaces Ethernet interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling Indicator LEDs Per-port status: link integrity, disabled, activity, speed, and full duplex System status: system, PoE, and link speed Console cables CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet
