Description

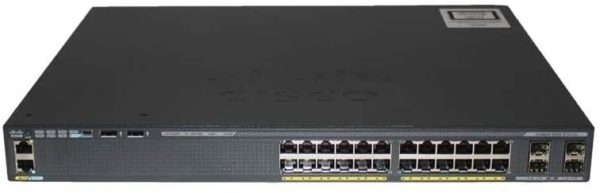

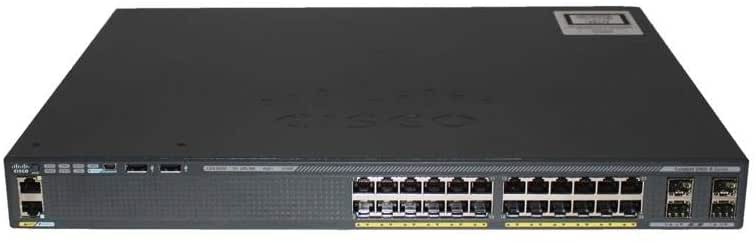

WS-C2960X-24PS-L Specification |
|
|
General |
|
|
model info: |
WS-C2960X-24PS-L |
|
enclosure type |
Rack-mountable – 1U |
|
Ports |
24 x 10/100/1000 + 4 x 1G SFP |
|
Network management Interface |
10/100 Mbps Ethernet (RJ-45) |
|
Available PoE Power |
370W |
|
Forwarding bandwidth(Gbps) |
108Gbps |
|
Maximum stacking number |
8 |
|
Stack Bandwidth |
80G |
|
Forwarding Performance |
71.4Mpps |
|
Switching bandwidth |
216Gbps |
|
Maximum active VLANs |
1023 |
|
MAC Address Table Size |
16K (default) |
|
CPU |
APM86392 600MHz dual core |
|
RAM |
512 MB |
|
Flash Memory |
128 MB |
|
Status Indicators |
Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
|
Expansion / Connectivity |
|
|
Console ports |
USB (Type-B), Ethernet (RJ-45) |
|
Stacking cable |
Optional |
|
Power Redundancy |
Option (PWR-RPS2300) |
|
Voltage range (Auto) |
110V-240V |
|
Power Consumption Operational |
0.49KVA |
|
Miscellaneous |
|
|
Width |
17.5 Inches (44.5 cm) |
|
Depth |
14.5 Inches (36.8 cm) |
|
Height |
1.75 Inches (4.5 cm) |
|
Package Weight |
23.48 Pounds (10.65Kg) |
|
Weight |
12.8 Pounds (5.8 Kg) |
|
Rack Mounting Kit |
optional |
|
MTBF in hours |
324,280 |
|
Compliant Standards |
● IEEE 802.1D Spanning Tree Protocol ● IEEE 802.1p CoS Prioritization ● IEEE 802.1Q VLAN ● IEEE 802.1s ● IEEE 802.1w ● IEEE 802.1X ● IEEE 802.1ab (LLDP) ● IEEE 802.3ad ● IEEE 802.3af and IEEE 802.3at ● IEEE 802.3ah (100BASE-X single/multimode fiber only) ● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports ● IEEE 802.3 10BASE-T ● IEEE 802.3u 100BASE-TX ● IEEE 802.3ab 1000BASE-T ● IEEE 802.3z 1000BASE-X ● RMON I and II standards ● SNMP v1, v2c, and v3 ● IEEE 802.3az ● IEEE 802.3ae 10Gigabit Ethernet |
|
System software / license |
|
|
System software |
IOS LAN BASE |
|
license |
NERGY-MGT-100-K9, EW-DO-100-DE |
|
features |
●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP ● PVST/PVST+ ● 802.1W/802.1S ● Port Fast/Uplink Fast ● port CoS Trust and Override ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ● Weighted Tail Drop ● DSCP transparency |
|
Network security |
● SSH, SSL and SCP ● RADIUS and TACACS+ ● SNMPv3 crypto ● 802.1x ● 802.1x Accounting / MIB ● 802.1x w/ port security ● 802.1x w/Voice VLAN ● 802.1x Guest VLAN ● 802.1x VLAN assignment ● 802.1x MAC-Auth Bypass ● BPDU/Root Guard ● Port Security ● Private VALN Edge ● Storm Control ● Block unknown unicast and multicast ● IGMP Snooping ● IGMP Filter/Throttle |
|
Management and Troubleshooting |
● Auto-MDOX ●TDR ● UDLD ● IP SLA Responder ● layer 2 / IP Traceroute ● SPAN ● RSPAN ● Express Setup ● Device Manager ● Cisco Network Assistant ● Smartports + Advisor ● Troubleshooting Advisor ● Drag-and-drop Cisco IOS Upgrade ● IP Address DHCP ● Autoinstall with saved configuration ● Configuration Replace ● DHCP Auto Image Upgrade ● DHCP Port Based Allocation ● Error Disable MIB |
|
Environmental Ranges |
|
|
Operating temperature up to 5000 ft (1500 m) |
23ºF to 113ºF |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF |
|
Short-term exception at sea level* |
23ºF to 131ºF |
|
Short-term exception up to 5000 feet (1500 m)* |
23ºF to 122ºF |
|
Short-term exception up to 10,000 feet (3000 m)* |
23ºF to 113ºF |
|
Short-term exception up to 13,000 feet (4000 m)* |
23º to 104ºF |
|
Storage temperature up to 15,000 feet (4573 m) |
-13º to 158ºF |
|
Operating altitude |
Up to 10,000 feet |
|
Storage altitude |
Up to 13,000 feet |
|
Operating relative humidity |
10% to 95% noncondensing |
|
Storage relative humidity |
10% to 95% noncondensing |
