Description

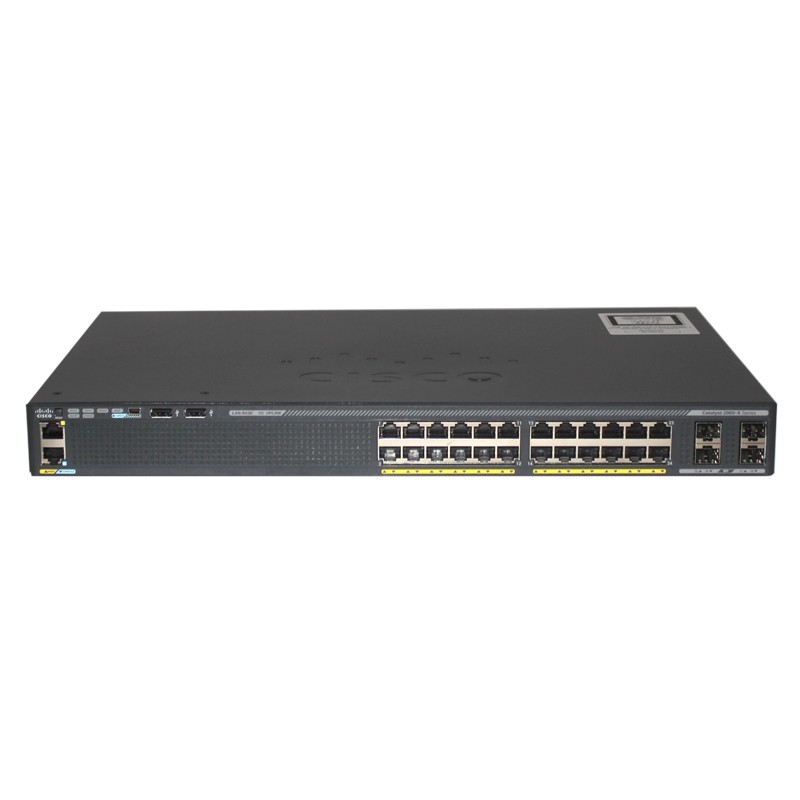

WS-C2960X-24TS-L Specification |
|
| General | |
| model info: | WS-2960X-24TS-L |
| enclosure type | Rack-mountable – 1U |
| Ports | 24 x 10/100/1000 + 4 x 1G SFP |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | None |
| Forwarding bandwidth(Gbps) | 108Gbps |
| Maximum stacking number | 8 |
| Stack Bandwidth | 80G |
| Forwarding Performance | 71.4Mpps |
| Switching bandwidth | 216Gbps |
| Maximum active VLANs | 1023 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Status Indicators | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, and link speed |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | Optional |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.039KVA |
| Miscellaneous | |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 14.5 Inches (36.8 cm) |
| Height | 1.75 Inches (4.5 cm) |
| Package Weight | 20.26 Pounds (9.19Kg) |
| Weight | 8.9 Pounds (4.0Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 622,350 |
| Compliant Standards | IEEE 802.1D Spanning Tree Protocol IEEE 802.1p CoS Prioritization IEEE 802.1Q VLAN IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab (LLDP) IEEE 802.3ad IEEE 802.3af and IEEE 802.3at IEEE 802.3ah (100BASE-X single/multimode fiber only) IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.1D Spanning Tree Protocol IEEE 802.1p CoS Prioritization IEEE 802.1Q VLAN IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab (LLDP) IEEE 802.3ad IEEE 802.3af and IEEE 802.3at IEEE 802.3ah (100BASE-X single/multimode fiber only) IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports |
| System software / license | |
| System software | IOS LAN BASE |
| license | NERGY-MGT-100-K9, EW-DO-100-DE |
| features | RPS Support Jumbo Frames VLANS Voice Vlan VTPv2 CDPv2 LLDP 802.3ad LACP PVST/PVST+ 802.1W/802.1S Port Fast/Uplink Fast port CoS Trust and Override Scheduling Priority Queuing Configure CoS Priority Queues Weighted Tail Drop DSCP transparency |
| Network security | SSH, SSL and SCP RADIUS and TACACS+ SNMPv3 crypto 802.1x 802.1x Accounting / MIB 802.1x w/ port security 802.1x w/Voice VLAN 802.1x Guest VLAN 802.1x VLAN assignment 802.1x MAC-Auth Bypass BPDU/Root Guard Port Security Private VALN Edge Storm Control Block unknown unicast and multicast IGMP Snooping IGMP Filter/Throttle |
| Management and Troubleshooting | Auto-MDOX TDR UDLD IP SLA Responder layer 2 / IP Traceroute SPAN RSPAN Express Setup Device Manager Cisco Network Assistant Smartports + Advisor Troubleshooting Advisor Drag-and-drop Cisco IOS Upgrade IP Address DHCP Autoinstall with saved configuration Configuration Replace DHCP Auto Image Upgrade DHCP Port Based Allocation Error Disable MIB |
