Description

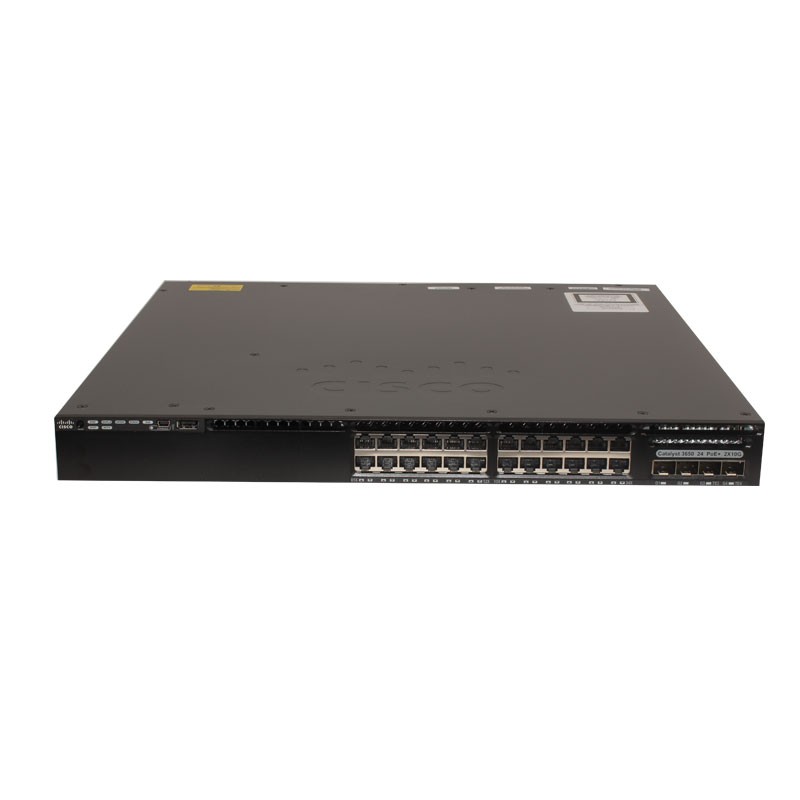

| Cisco catalyst 3650-24PD-S Specifications | ||
| Model info: | WS-C3650-24PD-S | |
| Enclosure type | Rack-mountable – 1U | |
| Ports | 24 x 10/100/1000 (POE+) + 2 x 10G SFP+ & 2 x 1G SFP | |
| Network management Interface | ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections |
|
| Available PoE Power | 390W | |
| Switching Capacity | 88Gbps | |
| Maximum stacking number | 9 | |
| Stack Bandwidth | 160Gbps | |
| Forwarding Performance | 68.45Mpps | |
| FNF entries | 24000 | |
| Maximum VLANs IDs | 4,094 | |
| Maximum VLANs IDs | 32K | |
| CPU | Multicore CPU | |
| RAM | 4 G | |
| Flash Memory | 2 G | |
| Wireless | ||
| Number of AP per switch/stack | 25 | |
| Number of wireless clients per switch/stack | 1000 | |
| Total number of WLANs per switch | 64 | |
| Wireless bandwidth per switch | up to 20Gbps | |
| Supported Aironet AP series | 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 | |
| Expansion / Connectivity | ||
| Console ports | USB (Type-B), Ethernet (RJ-45) | |
| Expansion Slot(s) | power redundant slot | |
| Accessory & Rack Moubt Kits | ●ACC-KIT-T1: Accessory kit ●RACK-KIT-T1: Rack mount kit ●4PT-KIT-T1:Extension rails and brackets for four-point mounting |
|
| Stacking module & cable | ●C3650-STACK-KIT: Stack Module ●STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length ●STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length ●STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length |
|
| Power supply | PWR-C2-640WAC | |
| Power Device | Power supply – redundant – plug-in module | |
| Power Redundancy | optional | |
| Voltage range (Auto) | 100V-240V | |
| Power Consumption of standalone (in Watts) | 101.5 (max) | |
| Miscellaneous | ||
| Width | 17.5 Inches (44.5 Cm) | |
| Depth | 17.625 Inches (44.8 Cm) | |
| Height | 1.73 Inches (4.4 Cm) | |
| Weight | 16 Pounds (7.26Kg) | |
| Rack Mounting Kit | optional | |
| MTBF in hours | 528,280 | |
| Compliant Standards | ● IEEE 802.1D Spanning Tree Protoco ● IEEE 802.1p CoS Prioritization ● IEEE 802.1Q VLAN ● IEEE 802.1s ● IEEE 802.1w ● IEEE 802.1X ● IEEE 802.1X-Rev ●IEEE 802.11 ● IEEE 802.1ab (LLDP) ● IEEE 802.3ad ● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports |
● IEEE 802.3 10BASE-T ● IEEE 802.3u 100BASE-TX ● IEEE 802.3ab 1000BASE-T ● IEEE 802.3z 1000BASE-X ● RMON I and II standards ● SNMP v1, v2c, and v3 |
| System software / license | ||
| System software | IOS IP Base (Upgradable) | |
| EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 | |
| Software license | ●C3650-24-S-E: IP Base to IP Services RTU paper license ●L-C3650-24-S-E: IP Base to IP Services RTU electronic license |
|
| Access Point Licenses | ●L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery) ●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) ●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) ●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license) |
|
| features | ●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ●Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ●IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency ●HSRP, VRRP ● RIPv1, v2 EIGRP stub, PIM stub, OSPF stub ● IPV6 management | |
| Advanced Network security | ● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF) ● Bidirectional data support on a SPAN ● User authentication ● Private VLAN ●Router and VLAN ACLs ● complete identity and security ● Multidomain authentication ● MAC address notification ● IGMP filtering ● Cisco security VLAN ACL ● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) ● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae ● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs ● Bridge protocol data unit (BPDU) Guard ● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security |
|
| Management | ●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB ●CISCO-BGP4-MIB, BGP4-MIB ●CISCO-BRIDGE-EXT-MIB ●CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB ●CISCO-CALLHOME-MIB ●CISCO-CEF-MIB ●CISCO-CIRCUIT-INTERFACE-MIB ●CISCO-ENTITY-VENDORTYPE-OID-MIB ●CISCO-CONTEXT-MAPPING-MIB ●CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB ●CISCO-EIGRP-MIB ●CISCO-EMBEDDED-EVENT-MGR-MIB ●CISCO-ENTITY-FRU-CONTROL-MIB ●CISCO-ENTITY-SENSOR-MIB ●ENTITY-MIB ●CISCO-ERR-DISABLE-MIB ●CISCO-CONFIG-COPY-MIB ●CISCO-FLOW-MONITOR-MIB ●CISCO-FTP-CLIENT-MIB ●CISCO-HSRP-EXT-MIB ●CISCO-HSRP-MIB ●CISCO-IETF-ISIS-MIB ●CISCO-IF-EXTENSION-MIB ●CISCO-IGMP-FILTER-MIB ●CISCO-CONFIG-MAN-MIB ●CISCO-IP-CBR-METRICS-MIB ●CISCO-IPMROUTE-MIB ●CISCO-IP-STAT-MIB ●CISCO-IP-URPF-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB ●CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB ●CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB ●CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-OSPF-MIB ●CISCO-OSPF-TRAP-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB ●CISCO-PIM-MIB ●CISCO-PING-MIB ●CISCO-PORT-QOS-MIB ●CISCO-PORT-SECURITY-MIB●CISCO-PORT-STORM-CONTROL-MIB ●CISCO-POWER-ETHERNET-EXT-MIB ●CISCO-PRIVATE-VLAN-MIB ●CISCO-PROCESS-MIB ●CISCO-PRODUCTS-MIB●CISCO-RF-MIB ●CISCO-RTP-METRICS-MIB ●CISCO-RTTMON-MIB ●CISCO-SMART-INSTALL-MIB |
●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB ●CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB ●CISCO-SYSLOG-MIB ●CISCO-TCP-MIB ●CISCO-UDLDP-MIB ●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB ●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB ●IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB ●IP-MIB ●IPMROUTE-STD-MIB ●LLDP-EXT-MED-MIB ●LLDP-MIB ●NOTIFICATION-LOG-MIB ●OLD-CISCO-MEMORY-MIB ●CISCO-CDP-MIB ●POWER-ETHERNET-MIB ●RMON2-MIB ●RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB ●SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-PROXY-MIB ●SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB ●SNMP-VIEW-BASED-ACM-MIB ●TCP-MIB ●UDP-MIB ●CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB ●AIRESPMACE-WIRELESS-MIB ●CISCO-LWAPP-IDS-MIB ●CISCO-LWAPP-AP-MIB ●CISCO-LWAPP-CCX-RM-MIB ●CISCO-LWAPP-CLIENT-ROAMING-MIB ●CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB ●CISCO-LWAPP-DOT11-CCX-CLIENT-MIB ●CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB ●CISCO-LWAPP-DOT11-CLIENT-MIB ●CISCO-LWAPP-DOT11-MIB ●CISCO-LWAPP-DOWNLOAD-MIB ●CISCO-LWAPP-LINKTEST-MIB ●CISCO-LWAPP-MFP-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB ●CISCO-LWAPP-QOS-MIB ●CISCO-LWAPP-REAP-MIB ●CISCO-LWAPP-ROGUE-MIB ●CISCO-LWAPP-RRM-MIB ●CISCO-LWAPP-SI-MIB ●CISCO-LWAPP-TSM-MIB ●CISCO-LWAPP-WLAN-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB |
| Technical Support and Services | ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services | |
| Environmental Ranges | ||
| Fahrenheit | Centigrade | |
| With AC power supply Operating environment and altitude |
||
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF | -5ºC to +45ºC |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF | -5ºC to +40ºC |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF | -5ºC to +45ºC |
| Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF | -5ºC to 50ºC |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF | -5ºC to 45ºC |
| With DC power supply Operating environment and altitude (NEBS) |
||
| Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF | -5ºC to +45ºC |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF | -5ºC to +40ºC |
| Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF | -5ºC to 35ºC |
| Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF | -5ºC to +55ºC |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF | -5ºC to +50ºC |
| Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF | -5ºC to +45ºC |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF | -5ºC to +45º |
| Storage environment | -40ºF to 160ºF | -40ºC to 70ºC |
| Feet | Meters | |
| Operating altitude | Up to 16,400 | Up to 5000m |
| Storage altitude | Up to 16,400 | Up to 5000m |
| Operating relative humidity | 5% to 96% noncondensing | |
| Storage relative humidity | 5% to 96% noncondensing | |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF | -5ºC to +45º |
| Storage environment | -40ºF to 160ºF | -40ºC to 70ºC |
| Feet | Meters | |
| Operating altitude | Up to 13,000 | Up to 4000m |
| Storage altitude | Up to 15,000 | Up to 4573m |
| Operating relative humidity | 10% to 95% noncondensing | |
| Storage relative humidity | 10% to 95% noncondensing |
