Description
-

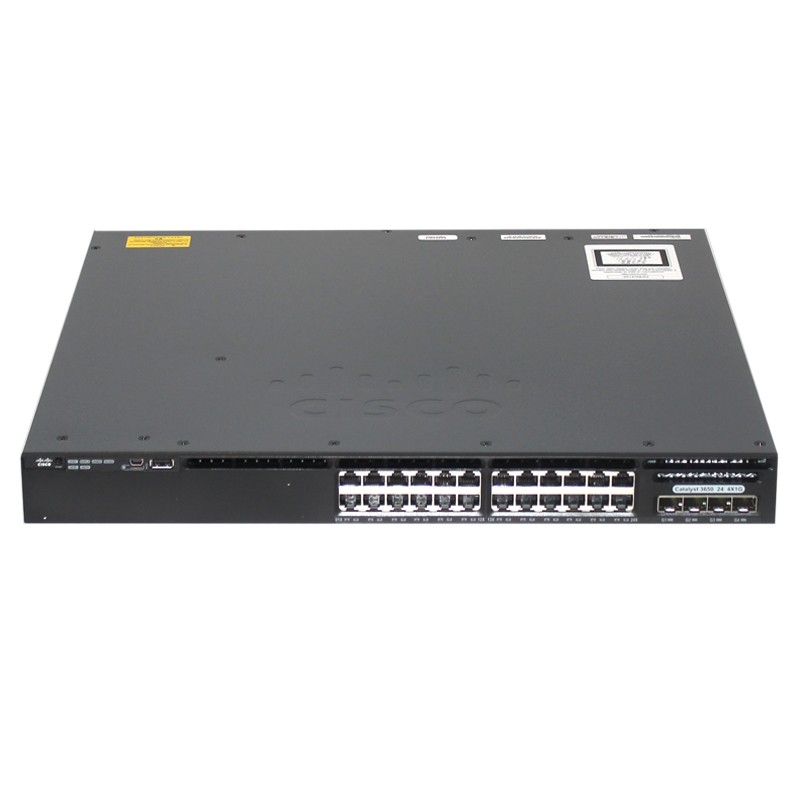

WS-C3650-24TS-L Specification
Model info: WS-C3650-24TS-L Enclosure type Rack-mountable – 1U Ports 24 x 10/100/1000 + 4 x 1G SFP Network management Interface ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power None Switching Capacity 88Gbps Maximum stacking number 9 Stack Bandwidth 160Gbps Forwarding Performance 41.66Mpps FNF entries disabled (IP base license required) Maximum VLANs IDs 255 Maximum VLANs IDs 32K CPU Multicore CPU RAM 4 G Flash Memory 2 G Wireless Number of AP per switch/stack 25 Number of wireless clients per switch/stack 1000 Total number of WLANs per switch 64 Wireless bandwidth per switch up to 20Gbps Supported Aironet AP series 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 Expansion / Connectivity Console ports USB (Type-B), Ethernet (RJ-45) Expansion Slot(s) power redundant slot Accessory & Rack Moubt Kits ●ACC-KIT-T1: Accessory kit ●RACK-KIT-T1: Rack mount kit
●4PT-KIT-T1:Extension rails and brackets for four-point mounting
Stacking module & cable ●C3650-STACK-KIT: Stack Module ●STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
●STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
●STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length
Power supply PWR-C2-640WAC Power Device Power supply – redundant – plug-in module Power Redundancy optional Voltage range (Auto) 100V-240V Power Consumption of standalone (in Watts) 57.1 (max) Miscellaneous Width 17.5 Inches (44.5 cm) Depth 17.5 Inches (44.5 cm) Height 1.73 Inches (4.4 cm) Weight 15.15 Pounds (6.87Kg) Rack Mounting Kit optional MTBF in hours 661,800 Compliant Standards ●IEEE 802.1D Spanning Tree Protoco ● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1X-Rev
●IEEE 802.11
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
System software / license System software IOS LAN Base (Upgradable) EnergyWise license ENERGY-MGMT, ENERGY-MGT-100-K9 Access Point Licenses ●L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery) ●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
features ●EEM ● RPS Support ● IP service-level agreements (SLAs) ● Advanced IP unicast routing protocols ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+
● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override
● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues
● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues
● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps
● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server
● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4
● VRF-lite ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow
Advanced Network security ●Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF) ● Bidirectional data support on a SPAN ● User authentication
● Private VLAN ●Router and VLAN ACLs ● complete identity and security
● Multidomain authentication ● MAC address notification
● IGMP filtering ● Cisco security VLAN ACL
● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae
● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs
● Bridge protocol data unit (BPDU) Guard
● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security
Management ●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB
●CISCO-BGP4-MIB, BGP4-MIB ●CISCO-BRIDGE-EXT-MIB
●CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB
●CISCO-CALLHOME-MIB ●CISCO-CEF-MIB
●CISCO-CIRCUIT-INTERFACE-MIB
●CISCO-ENTITY-VENDORTYPE-OID-MIB
●CISCO-CONTEXT-MAPPING-MIB
●CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB
●CISCO-EIGRP-MIB
●CISCO-EMBEDDED-EVENT-MGR-MIB
●CISCO-ENTITY-FRU-CONTROL-MIB ●CISCO-ENTITY-SENSOR-MIB
●ENTITY-MIB ●CISCO-ERR-DISABLE-MIB
●CISCO-CONFIG-COPY-MIB ●CISCO-FLOW-MONITOR-MIB
●CISCO-FTP-CLIENT-MIB ●CISCO-HSRP-EXT-MIB
●CISCO-HSRP-MIB ●CISCO-IETF-ISIS-MIB
●CISCO-IF-EXTENSION-MIB ●CISCO-IGMP-FILTER-MIB
●CISCO-CONFIG-MAN-MIB ●CISCO-IP-CBR-METRICS-MIB
●CISCO-IPMROUTE-MIB ●CISCO-IP-STAT-MIB
●CISCO-IP-URPF-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB
●CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB
●CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB
●CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-OSPF-MIB
●CISCO-OSPF-TRAP-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB
●CISCO-PIM-MIB ●CISCO-PING-MIB ●CISCO-PORT-QOS-MIB
●CISCO-PORT-SECURITY-MIB●CISCO-PORT-STORM-CONTROL-MIB
●CISCO-POWER-ETHERNET-EXT-MIB ●CISCO-PRIVATE-VLAN-MIB
●CISCO-PROCESS-MIB ●CISCO-PRODUCTS-MIB●CISCO-RF-MIB
●CISCO-RTP-METRICS-MIB ●CISCO-RTTMON-MIB
●CISCO-SMART-INSTALL-MIB
CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB
●CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB
●CISCO-SYSLOG-MIB ●CISCO-TCP-MIB ●CISCO-UDLDP-MIB
●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB
●IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB
●IP-MIB ●IPMROUTE-STD-MIB ●LLDP-EXT-MED-MIB
●LLDP-MIB ●NOTIFICATION-LOG-MIB
●OLD-CISCO-MEMORY-MIB ●CISCO-CDP-MIB
●POWER-ETHERNET-MIB ●RMON2-MIB
●RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB
●SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-PROXY-MIB
●SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB
●SNMP-VIEW-BASED-ACM-MIB ●TCP-MIB ●UDP-MIB
●CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB
●AIRESPMACE-WIRELESS-MIB ●CISCO-LWAPP-IDS-MIB
●CISCO-LWAPP-AP-MIB ●CISCO-LWAPP-CCX-RM-MIB
●CISCO-LWAPP-CLIENT-ROAMING-MIB
●CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
●CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
●CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
●CISCO-LWAPP-DOT11-CLIENT-MIB ●CISCO-LWAPP-DOT11-MIB
●CISCO-LWAPP-DOWNLOAD-MIB ●CISCO-LWAPP-LINKTEST-MIB
●CISCO-LWAPP-MFP-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB
●CISCO-LWAPP-QOS-MIB ●CISCO-LWAPP-REAP-MIB
●CISCO-LWAPP-ROGUE-MIB ●CISCO-LWAPP-RRM-MIB
●CISCO-LWAPP-SI-MIB ●CISCO-LWAPP-TSM-MIB
●CISCO-LWAPP-WLAN-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIBTechnical Support and Services ● Cisco SMARTnet Service ● Cisco Smart Foundation Service
● Cisco SP Base Service ● Cisco Focused Technical Support ServicesEnvironmental Ranges With AC power supply
Operating environment and altitudeOperating temperature up to 5000 ft (1500 m) 23ºF to 113ºF (-5ºC to +45ºC) Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF (-5ºC to +40ºC) Short-term exception at sealevel with single fan failure 23ºF to 113ºF (-5ºC to +45ºC) Short-term exception up to 5000 feet (1500 m) 23ºF to 122ºF (-5ºC to 50ºC) Short-term exception up to 10,000 feet (3000 m) 23ºF to 113ºF (-5ºC to 45ºC) With DC power supply
Operating environment and altitude (NEBS)Operating temperature up to 6000 ft (1800 m) 23ºF to 113ºF (-5ºC to +45ºC) Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF (-5ºC to +40ºC) Operating temperature up to 13,000 ft (4000m) 23ºF to 95ºF (-5ºC to 35ºC) Short-term exception up to 6,000 feet (1800 m) 23ºF to 131ºF (-5ºC to +55ºC) Short-term exception up to 10,000 feet (3000 m) 23ºF to 122ºF (-5ºC to +50ºC) Short-term exception up to 13,000 feet (4000 m) 23ºF to 113ºF (-5ºC to +45ºC) Short-term exception at sealevel with single fan failure 23ºF to 113ºF (-5ºC to +45º) Storage environment -40ºF to 160ºF (-40ºC to 70ºC) Operating altitude Up to 16,400 Feet (Up to 5000m) Storage altitude Up to 16,400 Feet (Up to 5000m) Operating relative humidity 5% to 96% noncondensing Storage relative humidity 5% to 96% noncondensing Short-term exception at sealevel with single fan failure 23ºF to 113ºF Storage environment -40ºF to 160ºF
