Description

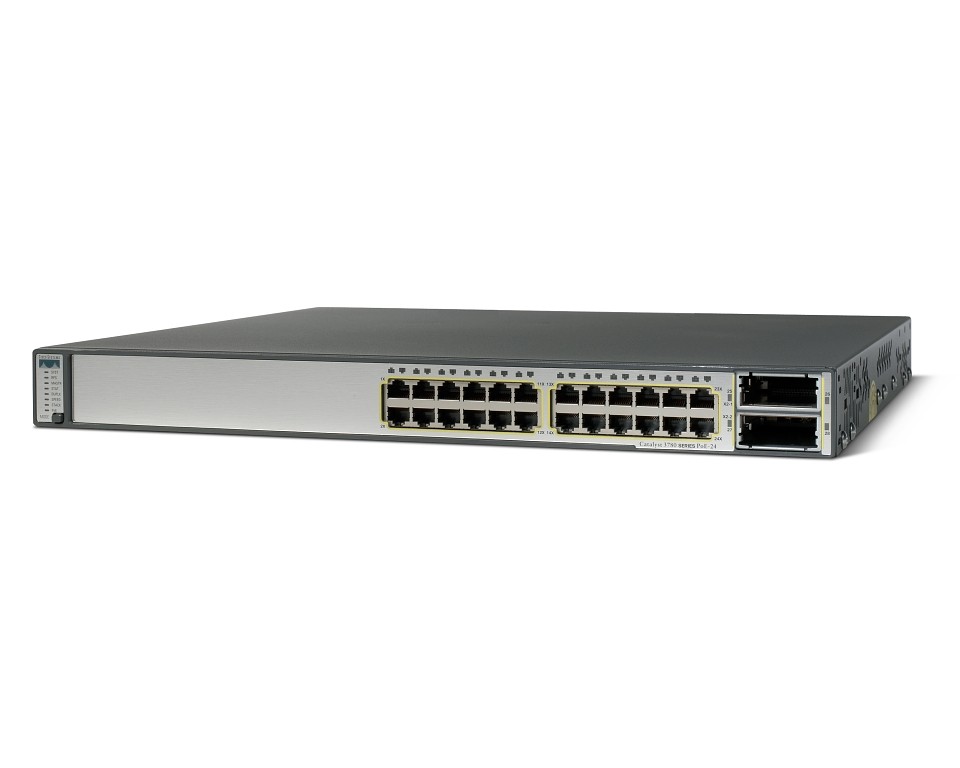

Specification (WS-C3750E-24TD-S)
| WS-C3750E-24TD-S data sheet | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3750E-24TD-S |
| Product Type | Managed, Stackable 24 ports L3 Switch |
| Form Factor | Fixed, Rack Mountable 1U, Stackable/Clustering |
| Switch Port density – Uplinks | 24 x 10/100/1000 Ethernet Ports Ethernet Ports + 2 x X2 |
| MAC Address Table Size | 12K entries |
| Max Number of Stacks | 9 |
| Routing Protocol | RIP-1, RIP-2, EIGRP, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Layer 3 switching, Layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| DRAM Memory | 256 MB |
| Flash Memory | 64 MB Flash |
| LED Status Lights Indicators | Link activity, port transmission speed, port duplex mode, bandwidth utilization %, power, link OK, system |
| Connectivity / Expansion Slots | |
| Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T – RJ-45 1 x console – RJ-45 – management 1 x 10Base-T/100Base-TX – RJ-45 – management Network stack device : 1 x x 2 2 x X2 |
| Power Supply Specifications | |
| Power Device | Power supply – plug-in module |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational | 99 Watt |
| Features | Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.5 cm |
| Depth | 46 cm |
| Height | 4.5 cm |
| Weight | 8.1 kg |
| Compliant Standards | CE, FCC Class A certified, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, FCC Part 15, MIC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1 |
| System Software | |
| Software Included | Cisco IOS IP Base |
