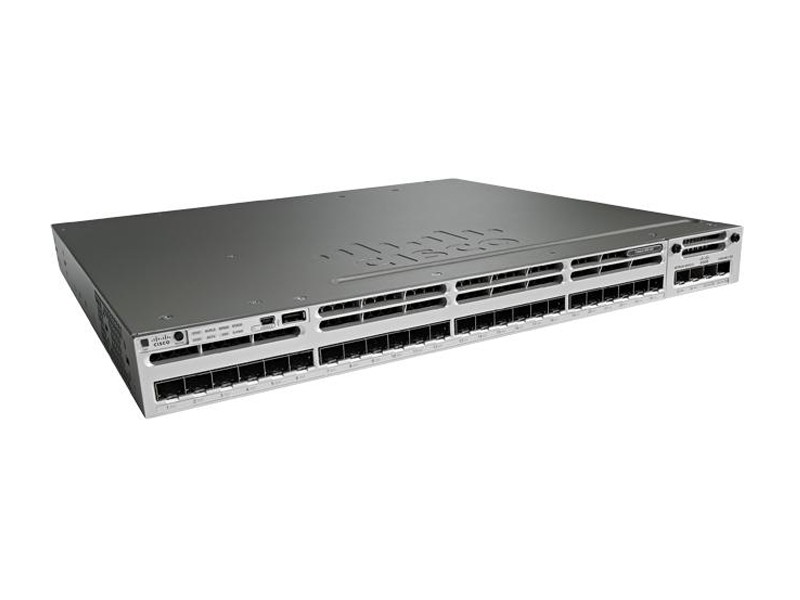

| Cisco catalyst 3850-24S-S |
|
|
| model info: |
WS-C3850-24S-S |
|
| enclosure type |
Rack-mountable – 1U |
|
| Ports |
24 x SFP ports |
|
| Network management Interface |
● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
● Management console port: RJ-45-to-DB9 cable for PC connections |
|
| Available PoE Power |
None |
|
| Switching Capacity |
92Gbps |
|
| Maximum stacking number |
9 |
|
| Stack Bandwidth |
480Gbps |
|
| Forwarding Performance |
68.4Mpps |
|
| FNF entries |
48,000 flows |
|
| Maximum VLANs IDs |
1,000 |
|
| MAC Address Table Size |
32K |
|
| CPU |
Multicore CPU |
|
| RAM |
4 G |
|
| Flash Memory |
2 G |
|
| Wireless |
|
|
| Number of AP per switch/stack |
50 |
|
| Number of wireless clients per switch/stack |
2000 |
|
| Total number of WLANs per switch |
64 |
|
| Wireless bandwidth per switch |
up to 20Gbps |
|
| Supported Aironet AP series |
3600, 3500, 2600, 1600, 1260, 1140, 1040 |
|
| Expansion / Connectivity |
|
|
| Console ports |
USB (Type-B), Ethernet (RJ-45) |
|
| Expansion Slot(s) |
1 network module slot and 1 power redundant slot |
|
| Network Modules Selection |
● C3850-NM-4-1G: 4 x 1G uplinks network module
●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module |
|
| Stacking cable |
●STACK-T1-50CM StackWise stacking cable with a 0.5 m length
●STACK-T1-1M StackWise stacking cable with a 1.0 m length
●STACK-T1-3M StackWise stacking cable with a 3.0 m length |
|
| Stack Power Cable (recommended) |
●CAB-SPWR-30CM stack power cable with a 30CM length
●CAB-SPWR-150CM stack power cable with a 150CM length |
|
| Power supply |
PWR-C1-350WAC |
|
| Power Device |
Power supply – redundant – plug-in module |
|
| Power Redundancy |
optional |
|
| Voltage range (Auto) |
100V-240V |
|
| Power Consumption of standalone(in Watts) |
109.75 (Max) |
|
| Miscellaneous |
|
|
| Width |
17.5 Inches (44.5 Cm) |
|
| Depth |
17.7 Inches (45.0 Cm) |
|
| Height |
1.75 Inches (4.45 Cm) |
|
| Weight |
15.48 Pounds (7.02Kg) |
|
| Rack Mounting Kit |
optional |
|
| MTBF in hours |
315,840 |
|
| Compliant Standards |
● IEEE 802.1D Spanning Tree Protoco
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1X-Rev
●IEEE 802.11
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports |
● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3 |
| System software / license |
|
|
| System software |
IOS IP Base (Upgradable) |
|
| EnergyWise license |
ENERGY-MGMT, ENERGY-MGT-100-K9 |
|
| Software license |
●C3850-24-S-E: IP Base to IP Services RTU paper license
●L-C3850-24-S-E: IP Base to IP Services RTU electronic license |
|
| Access Point Licenses |
●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
●LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license) |
|
| features |
●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ●Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency ● HSRP, VRRP ● RIPv1, v2 EIGRP stub, PIM stub, OSPF stub ● IPV6 management |
|
| Advanced Network security |
● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF)
● Bidirectional data support on a SPAN ● User authentication
● Private VLAN ●Router and VLAN ACLs ● complete identity and security
● Multidomain authentication ● MAC address notification
● IGMP filtering ● Cisco security VLAN ACL
● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae
● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs
● Bridge protocol data unit (BPDU) Guard
● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security |
|
| Management |
●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB
●CISCO-BGP4-MIB, BGP4-MIB ●CISCO-BRIDGE-EXT-MIB
●CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB
●CISCO-CALLHOME-MIB ●CISCO-CEF-MIB
●CISCO-CIRCUIT-INTERFACE-MIB
●CISCO-ENTITY-VENDORTYPE-OID-MIB
●CISCO-CONTEXT-MAPPING-MIB
●CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB
●CISCO-EIGRP-MIB
●CISCO-EMBEDDED-EVENT-MGR-MIB
●CISCO-ENTITY-FRU-CONTROL-MIB ●CISCO-ENTITY-SENSOR-MIB
●ENTITY-MIB ●CISCO-ERR-DISABLE-MIB
●CISCO-CONFIG-COPY-MIB ●CISCO-FLOW-MONITOR-MIB
●CISCO-FTP-CLIENT-MIB ●CISCO-HSRP-EXT-MIB
●CISCO-HSRP-MIB ●CISCO-IETF-ISIS-MIB
●CISCO-IF-EXTENSION-MIB ●CISCO-IGMP-FILTER-MIB
●CISCO-CONFIG-MAN-MIB ●CISCO-IP-CBR-METRICS-MIB
●CISCO-IPMROUTE-MIB ●CISCO-IP-STAT-MIB
●CISCO-IP-URPF-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB
●CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB
●CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB
●CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-OSPF-MIB
●CISCO-OSPF-TRAP-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB
●CISCO-PIM-MIB ●CISCO-PING-MIB ●CISCO-PORT-QOS-MIB
●CISCO-PORT-SECURITY-MIB●CISCO-PORT-STORM-CONTROL-MIB
●CISCO-POWER-ETHERNET-EXT-MIB ●CISCO-PRIVATE-VLAN-MIB
●CISCO-PROCESS-MIB ●CISCO-PRODUCTS-MIB●CISCO-RF-MIB
●CISCO-RTP-METRICS-MIB ●CISCO-RTTMON-MIB
●CISCO-SMART-INSTALL-MIB |
●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB
●CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB
●CISCO-SYSLOG-MIB ●CISCO-TCP-MIB ●CISCO-UDLDP-MIB
●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB
●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB
●IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB
●IP-MIB ●IPMROUTE-STD-MIB ●LLDP-EXT-MED-MIB
●LLDP-MIB ●NOTIFICATION-LOG-MIB
●OLD-CISCO-MEMORY-MIB ●CISCO-CDP-MIB
●POWER-ETHERNET-MIB ●RMON2-MIB
●RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB
●SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-PROXY-MIB
●SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB
●SNMP-VIEW-BASED-ACM-MIB ●TCP-MIB ●UDP-MIB
●CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB
●AIRESPMACE-WIRELESS-MIB ●CISCO-LWAPP-IDS-MIB
●CISCO-LWAPP-AP-MIB ●CISCO-LWAPP-CCX-RM-MIB
●CISCO-LWAPP-CLIENT-ROAMING-MIB
●CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
●CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
●CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
●CISCO-LWAPP-DOT11-CLIENT-MIB ●CISCO-LWAPP-DOT11-MIB
●CISCO-LWAPP-DOWNLOAD-MIB ●CISCO-LWAPP-LINKTEST-MIB
●CISCO-LWAPP-MFP-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB
●CISCO-LWAPP-QOS-MIB ●CISCO-LWAPP-REAP-MIB
●CISCO-LWAPP-ROGUE-MIB ●CISCO-LWAPP-RRM-MIB
●CISCO-LWAPP-SI-MIB ●CISCO-LWAPP-TSM-MIB
●CISCO-LWAPP-WLAN-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB
|
| Technical Support and Services |
● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services |
|
| Environmental Ranges |
|
|
|
Fahrenheit |
Centigrade |
With AC power supply
Operating environment and altitude |
|
|
| Operating temperature up to 5000 ft (1500 m) |
23ºF to 113ºF |
-5ºC to +45ºC |
| Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF |
-5ºC to +40ºC |
| Short-term exception at sealevel with single fan failure |
23ºF to 113ºF |
-5ºC to +45ºC |
| Short-term exception up to 5000 feet (1500 m) |
23ºF to 122ºF |
-5ºC to 50ºC |
| Short-term exception up to 10,000 feet (3000 m) |
23ºF to 113ºF |
-5ºC to 45ºC |
With DC power supply
Operating environment and altitude (NEBS) |
|
|
| Operating temperature up to 6000 ft (1800 m) |
23ºF to 113ºF |
-5ºC to +45ºC |
| Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF |
-5ºC to +40ºC |
| Operating temperature up to 13,000 ft (4000m) |
23ºF to 95ºF |
-5ºC to 35ºC |
| Short-term exception up to 6,000 feet (1800 m) |
23ºF to 131ºF |
-5ºC to +55ºC |
| Short-term exception up to 10,000 feet (3000 m) |
23ºF to 122ºF |
-5ºC to +50ºC |
| Short-term exception up to 13,000 feet (4000 m) |
23ºF to 113ºF |
-5ºC to +45ºC |
| Short-term exception at sealevel with single fan failure |
23ºF to 113ºF |
-5ºC to +45º |
| Storage environment |
-40ºF to 160ºF |
-40ºC to 70ºC |
|
Feet |
Meters |
| Operating altitude |
Up to 13,000 |
Up to 4000m |
| Storage altitude |
Up to 15,000 |
Up to 4573m |
| Operating relative humidity |
10% to 95% noncondensing |
|
| Storage relative humidity |
10% to 95% noncondensing |
|
