Description

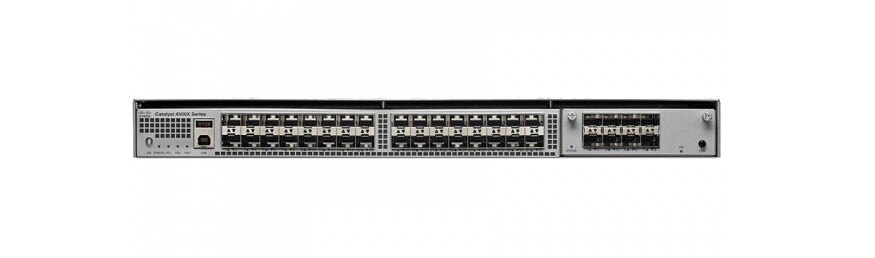

WS-C4500X-40X-ES Specification |
|
|
System |
|
| Expansion Module (Optional) | 8×10 GE SFP+/SFP – C4KX-NM-8SFP+ |
| Management Port | 10/100/1000 Base-T |
| USB Port | Type A (storage and boot) up-to 4 GB |
| Dual Power Supply | Yes |
| Field Replaceable Fans | Yes (5 fans) |
| Fan Redundancy | No performance impact with single fan failure |
|
Scalability |
|
| System Throughput | Up to 800 Gbps |
| IPv4 Routing in Hardware | Up to 250 Mpps |
| IPv6 Routing in Hardware | Up to 125 Mpps |
| L2 Bridging in Hardware | Up to 250 Mpps |
| Media Access Control (MAC) Entries | 55K |
| Flexible Netflow Entries | 128K |
| Switched Port Analyzer (SPAN), Remote Switched Port Analyzer (RSPAN) | 8 line rate bidirectional sessions (ingress and egress) |
| Total VLANs | 4094 |
| Total Switched Virtual Interfaces (SVIs) | 4094 |
| IGMP groups | 32K |
| Dynamic Host Configuration Protocol (DHCP) Snooping Entries | 12K (DHCP snooping bindings) |
| ARP Entries | 47K |
| Spanning Tree Protocol Instances | 10K |
| Jumbo Frame Support for Bridged and Routed Packets | Up to 9216 bytes |
|
High Availability and Resiliency |
|
| High Availability Solution | Virtual Switching System (VSS) |
| Number of stackable switches in VSS | Up to 2 |
| VSS Throughput | Up to 1.6 Tbps |
| Virtual Switch Link | 1GE or 10GE |
| Max number of Virtual Switch Links | 8 |
| In-Service Software Upgrade | Across the switches |
| Nonstop Forwarding with Stateful Switchover | Across the switches |
|
CPU and Memory |
|
| Onboard Memory (SRAM DDR-II) | 4 GB |
| Port Buffers | 32-MB Shared Memory |
| CPU | Dual Core 1.5 GHz |
| NVRAM | 2 GB |
| Optional External Memory (SD Card) | 2 GB |
|
QoS Features |
|
| Port Queues | 8 Queues/Port |
| CPU Queues | 64 |
| QoS Entries | 128K (64K ingress and 64K in egress) Shared with ACL |
| Aggregate Rate-Limiting | Ingress port or VLAN and egress VLAN or Layer 3 port |
| Rate-Limiting Level Types | Committed Information Rate (CIR), Peak Information Rate (PIR) |
| Aggregate Traffic Rate-Limiting Policers (1K=1024) | 16K |
| Flow-Based Rate-Limiting Method; Number of Rates | Supported using flow-records in the classification criteria and policing action |
| Qos Policy Enforcement | Per Port or Per Vlan or Per Port, Per VLAN Granularity |
| Class of Service (CoS) | Yes |
| Differentiated Services Code Point (DSCP) | Yes |
|
Security Features |
|
| Port Security | Yes |
| IEEE 802.1x and 802.1x Extensions | Yes |
| VLAN, Router, and Port ACLs | Yes |
| Security ACL Entries (1K=1024) | 128K (64K ingress and 64K in egress) Shared with QoS |
| Unicast Reverse Path Forwarding (uRPF) Check in Hardware | Yes |
| CPU Rate Limiters (DoS Protection) Includes Control Plane Policing | Yes |
| Private VLANs | Yes |
| Micro Flow Policer | Yes. Supported using flow records in the class-map |
| CPU HW Rate Limiters by Packet Per Second (pps) and Bit Rate Policers (bps) | Supported in hardware control-plane policing (CoPP) |
| Control Plane Policing (CoPP) for Multicast | Yes |
| ACL Labels | Yes |
| Port ACL | Yes |
| Traffic Storm Control (formally known as Broadcast/Multicast Suppression) | Yes |
|
Virtualization Features |
|
| VRF-Lite Scalability | 64 |
| Easy Virtual Network (EVN) Scalability | 32 |
|
Environmental Conditions |
|
| Operating Temperature | 0°C to 40°C (RH to 90%) |
| Storage Temperature | -40°C to 70°C (RH 93%) |
| Operating Altitude | 60m below sea level to 3000m above sea level |
| Relative Humidity | Nonoperating Humidity: 95% RH |
| Acoustic Noise Measured per ISO 7779 and Declared per ISO 9296 Bystander Positions Operating to an Ambient Temperature of 25°C | Industrial Product: 65 dBA maximum |
| RoHS | Reduction of Hazardous Substances (ROHS) 5 |
|
Power Supply |
|
| AC Power Max Rating | 750W |
| System Power Consumption | 330W nominal/400W max |
| Input-Voltage Range and Frequency | AC 100 to 240 VAC 50-60 Hz/DC -72 VDC to -40 VDC |
| DC Power Max Rating | 750W |
| AC to DC failover and vice versa | Yes |
| Total Output BTU (Note: 1000 BTU/hr = 293W) | 1122 BTU/hr (330 W) nominal/1365 BTU/hr (400 W) max |
| Input Current | AC 11A @ 110VAC, 6 A @ 200VAC/DC 25A Max |
| Output Ratings | 12V @ 62A & 3.3V @ 3A |
| Output Holdup Time | AC = 16 ms; DC = 4 ms @ maximum load |
| Power-Supply Input Receptacles | AC IEC 60320 C15/DC Custom detachable screw terminal (supplied) |
| Power Cord Rating | AC 15A/DC 25A |
|
MTBF Information |
|
| WS-C4500X-24X-ES | 209,330 |
| WS-C4500X-40X-ES | 199,720 |
| WS-C4500X-F-16SFP+ | 209,330 |
| WS-C4500X-F-32SFP+ | 199,720 |
| C4KX-FAN-R | L10 Life 60,000 at 40C |
|
Regulatory Standards Compliance |
|
| Regulatory Compliance | CE marking |
| EMI and EMC Compliance | 47CFR Part 15 (CFR 47) Class A
AS/NZS CISPR22 Class A CISPR22 Class A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A CNS13438 Class A EN55024 CISPR24 EN300386 KN24 |
| Safety Certifications | UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition IEC 60950-1 Second Edition AS/NZS 60950-1 |
| Industry EMC, Safety, and Environmental Standards | GR-63-Core Network Equipment Building Systems (NEBS) Level 3
GR-1089-Core Level 3 |
